Filament Dry Box
prusaprinters

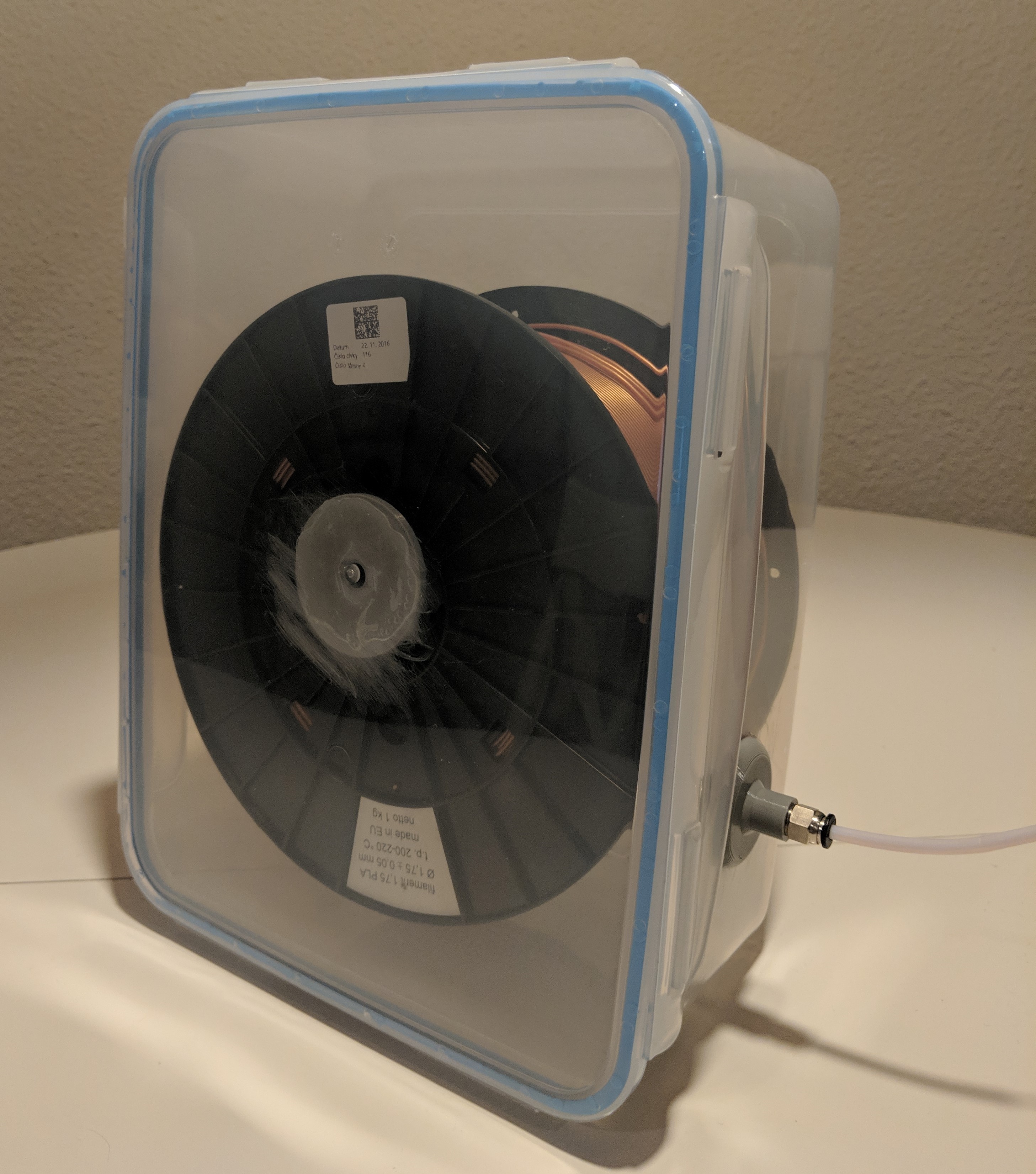

<p>This is the design for a dry box meant to hold 3d printer filament spools up to 1Kg.<br/> The actual box shouldn't matter too much as long as you find one that can actually hold your spools.<br/> You should take into consideration that depending on the size of the center hole of your spool you might need a bit more vertical clearance so the spool won't actually touch the bottom.</p> <p>You'll need to print 2x Spindle Plug, 1x Spindle Connector and 1x Tube Port for each dry box that you want to make.</p> <p>I've created a somewhat long-winded video explaining how to put everything together: <a href="https://youtu.be/aVk4rTe3jR4">https://youtu.be/aVk4rTe3jR4</a></p> <p>The plastic box I'm using is one from GreatPlastic with number 1314 but it's not available for sale online and I doubt you can find it outside of Spain. But any box with an inner size of at least 20.5cmx22cm and a height of 10cm should do. The only printed piece that is specific for the box I'm using is the "Tube Connector" which is made for a box with a height of 10.5cm (10-11cm is probably good too).if anyone needs a different size the Fusion360 design files are included for download too. (Or if you ask nicely I might adjust it for you ;-) )</p> <h3>Print instructions</h3><h3>Category: 3D Printer Accessories Print Settings</h3> <p><strong>Printer Brand:</strong> Prusa</p> <p><strong>Printer:</strong> <a href="http://amzn.to/2rqZ6Uo">i3 MK3</a></p> <p><strong>Rafts:</strong> No</p> <p><strong>Supports:</strong> No</p> <p><strong>Resolution:</strong> 0.2mm</p> <p><strong>Infill:</strong> 20%</p> <p><strong>Notes:</strong></p> <p>Just printed it with Prusa's default 0.2mm speed setting. The pieces are pretty simple so the settings shouldn't matter too much. The print does need a bit of bridging but it's so little you should be able to print it without any supports.</p>
