Filament box

prusaprinters

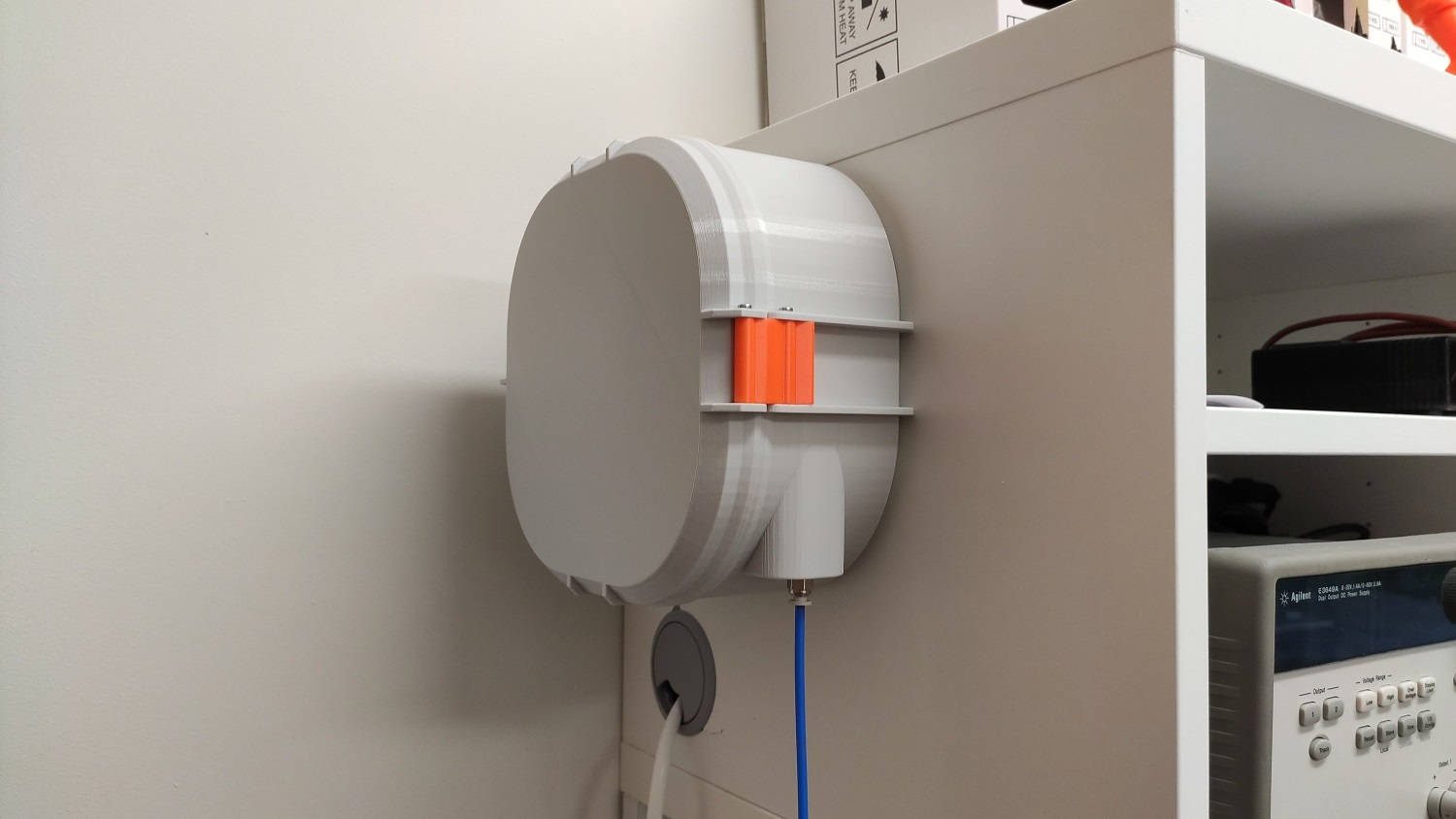

<p>Box for filament.<br/> It's modified tool box<br/> <a href="https://www.prusaprinters.org/prints/39729-tool-box-parametric">https://www.prusaprinters.org/prints/39729-tool-box-parametric</a>.</p> <p>The groove for the seal is provided directly for filament A82-85 1.75 mm, but maybe it is better with an elastic band 2 mm. In fact, even the softest filaments are not as soft as an elastic band.</p> <p>It need:<br/> M3x40mm for the latch and the hinge.<br/> M4x8mm for spool holder.</p> <p>It may need to drill the hinge of the lid with a 3mm drill bit, it must rotate freely around the axis.</p> <p>The box is parametric and can be any size, including the thickness of the box and the ribs.</p> <p>205.210.100mm are internal dimensions.<br/> (205 internal is 214mm outside dimension)</p> <p>Gcode files are only for Prusa MK3/S with modified printer setings(bed size Y= 215mm and extruder position Y +3mm) to be able to print 215mm on the Y axis.</p> <p>I haven't printed and tested the desk stand but it should be ok.</p> <p>I added a modified version with silica clips and the filament the output does not need support.<br/> Silica clips are also available as a separate part that can be glued with glue to already printed boxes.</p>
