Fifine K669 Tripod Mount Part

prusaprinters

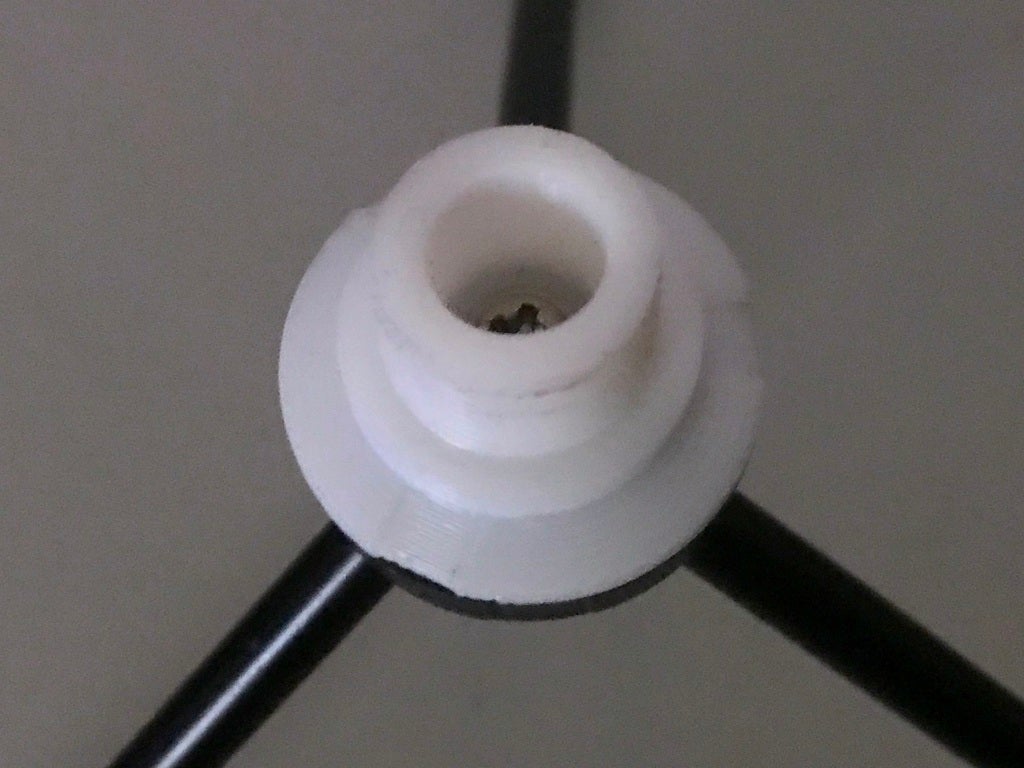

<p>Replacement part for the microphone mount-point of the Fifine K669 USB Microphone tripod. Interior walls are extra thick to improve the strength and reliability.</p> <h3>Print instructions</h3><p><strong>Print Settings</strong></p> <ul> <li><strong>Rafts:</strong> No</li> <li><strong>Supports:</strong> Yes</li> <li><strong>Resolution:</strong> 0.2mm</li> <li><strong>Infill:</strong> 50%</li> </ul> <p><strong>Notes</strong></p> <p>This part prints quickly and the threads come out great using a well-tuned printer with a small layer height — below 0.2mm is recommended. For best strength print with 100% infill or by setting slicer options to make every layer solid. An infill of 50% works fine, and it should be reliable even down to 10% if the walls are thick enough.</p> <p><strong>How I Designed This</strong></p> <p>This part was made in OpenSCAD by taking lots of careful measurements with a digital caliper of the original part. (The original part shattered into several small pieces and had to be glued back together before measurements could be taken!)</p> <p>The threads code comes from the <a href="https://www.thingiverse.com/thing:900137">Naca Sweep</a> code by <a href="https://www.thingiverse.com/Parkinbot">Rudolf Huttary</a>.</p>
