Fan duct for E3D Hotend with Gregs reloaded on Mendel90

prusaprinters

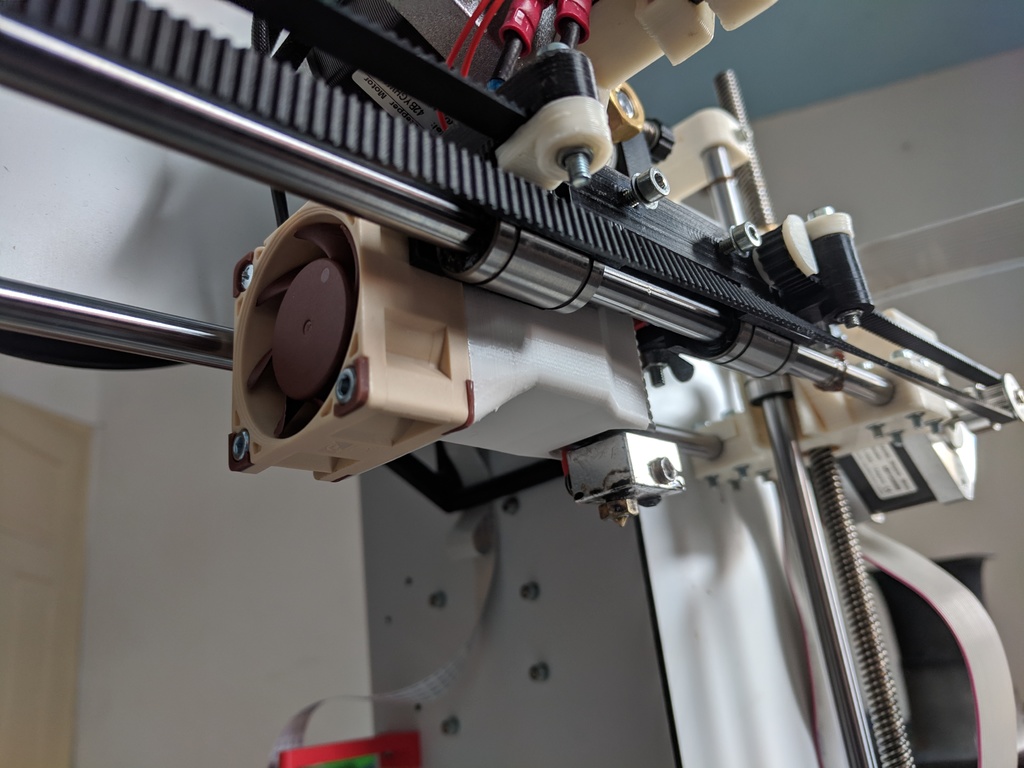

<p>This shroud fits <a href="https://www.thingiverse.com/thing:157992">NumberSix's X-Carriage Fan Mod</a>, the <a href="https://www.thingiverse.com/thing:18379">Greg's Wade reloaded extruder</a> (Mirrored JHead version), <a href="https://www.thingiverse.com/thing:271107">RalphHiltons Part-cooling fan</a> and the E3D v6 Hotend.</p> <p>The fan holes are 2.5mm to tap an M3 thread into.</p> <p>The hole at the top allows for a wing nut or thumb screw (&lt;= 21mm) to mount the extruder.</p> <p>You can find the Fusion360 project here: <a href="https://a360.co/2HmdHFi">https://a360.co/2HmdHFi</a></p> <h3> Print Settings</h3> <p><strong>Printer:</strong></p> <p>Mendel90</p> <p><p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div><strong>Supports:</strong></p> <p>Yes</p> <p><p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.25 mm</p></div><br/> <strong>Filament:</strong><br/> Das Filament PLA White <br/> <p class="detail-setting notes"><strong>Notes: </strong> </p><div><p>I recommend printing fan-side down and using support, but it might be possible to print hotend-side down with with a brim and avoid supports.</p></div></p> </p></p> Category: 3D Printer Parts
