Face Shield for surgeons, dentists or anyone using magnifying glasses – RC3 Slim style – multiple variants incl. US

prusaprinters

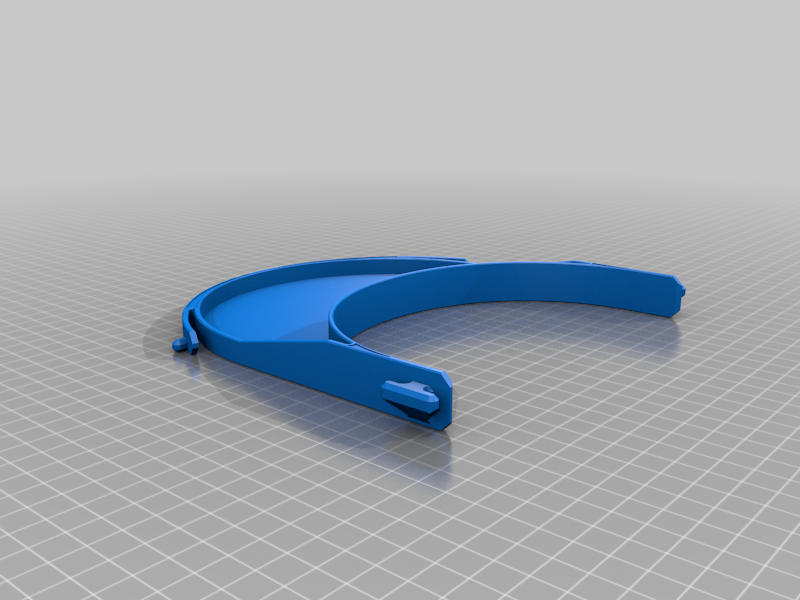

<p>Being member of makervsvirus.org I was asked to provide a face shield with an extension in order to be able to wear magnifying glasses behind the shield. It also should have a cover at the top. The designs I found were either to heavy or had no cover, so I mixed the classic RC3 with the RC3 slim front part.</p> <p>You can use standard RC3 shield foils with 8-6-8 holes.</p> <p>Since I was doing a modular CAD model, I am able to provide at leight weight open version starting at approx. 40g up to an reinforced version with a lid at approx. 70g. So you can choose the design according to your requirement and material (If you print with PETG you will not need the versions with the reinforcement ribs).</p> <p>If you need any special adjustments, let me know and I will try to include it in another version.</p> <p>On request I added the US versions.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Creality</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>CR10S PRO</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div> <p><strong>Resolution:</strong></p> <p>0,2</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>50%</p></div> <p><strong>Filament:</strong> Sunlu PETG orange</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>PLA should work as well.</p></div> How I Designed This =================== <p><strong>FreeCAD</strong></p> <div><p>...model available upon request</p></div> </p></p></p> Category: Other
