EZABL Mount for Ender 3 V2

prusaprinters

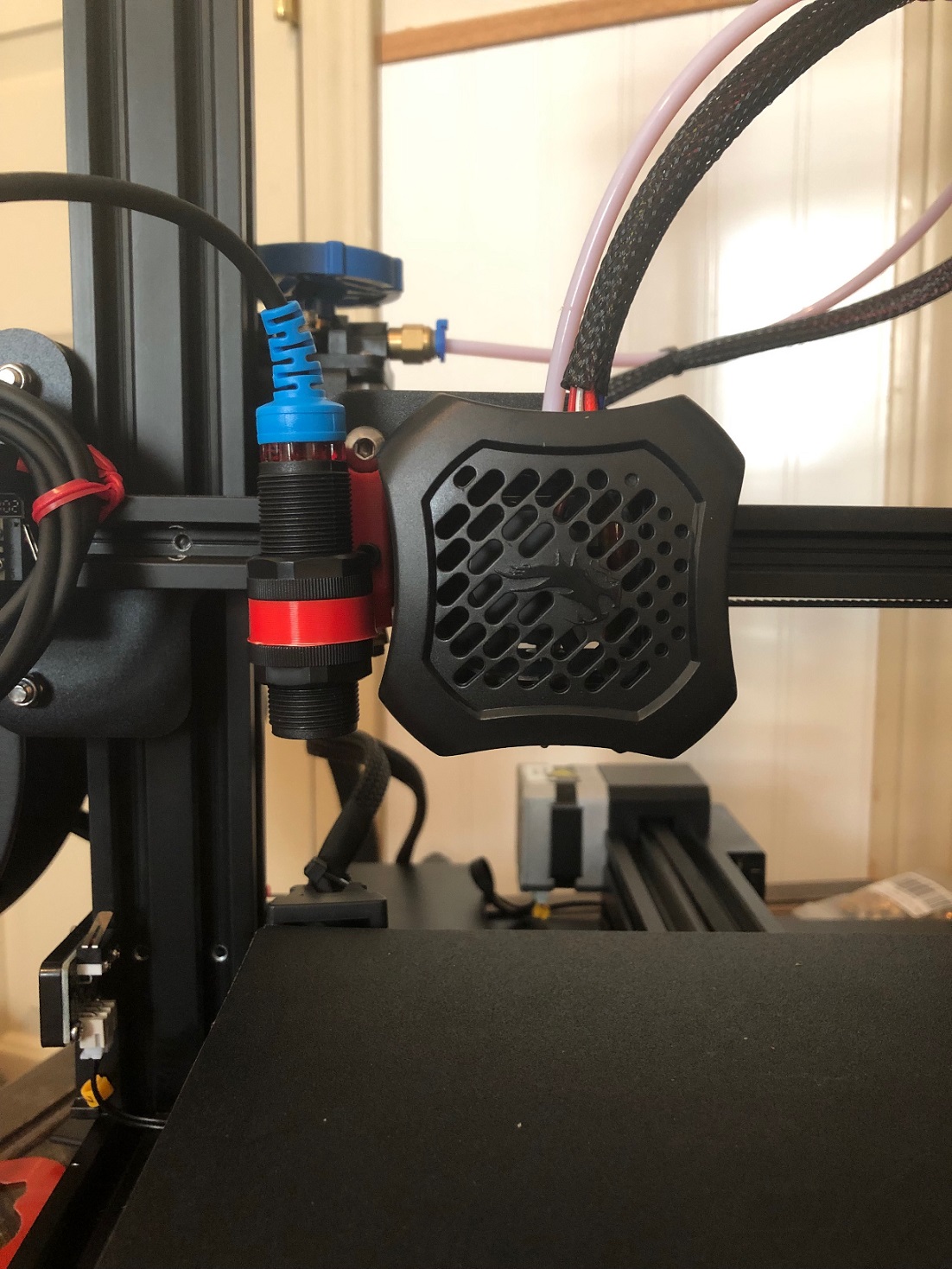

<p>Ender 3 V2 sensor mount for the TH3D EZABL and EZABL Pro 18mm sensors. Can also be used with TH3D's adapter rings for the 12mm sensor.</p><p>Since it's outside of the fan shroud entirely, it won't be exposed to much heat. PLA, PETG, ABS, they'll all work fine for this application, unless your printer is an in enclosure. In which case, use ABS!</p><p>Uses two M3x10 screws to attach to the BLTouch mounting points on the standard X carriage. You might be able to get away with M3x12 screws, but clearance behind the carriage might become an issue.</p><p>I choose to print these mounts in vertical orientation, rather than horizontal. You may decide to print horizontal for strength, that's personal preference. If you do print it vertically, don't over-tighten the screws when you install it or you'll break a layer line.</p><p>Nozzle-to-probe offsets are {-44, -12}, or if you're using TH3D's Unified Firmware, the ENDER3V2_OEM mount type should work well enough.</p>
