External Fan Housing for Bosch Rexroth
prusaprinters

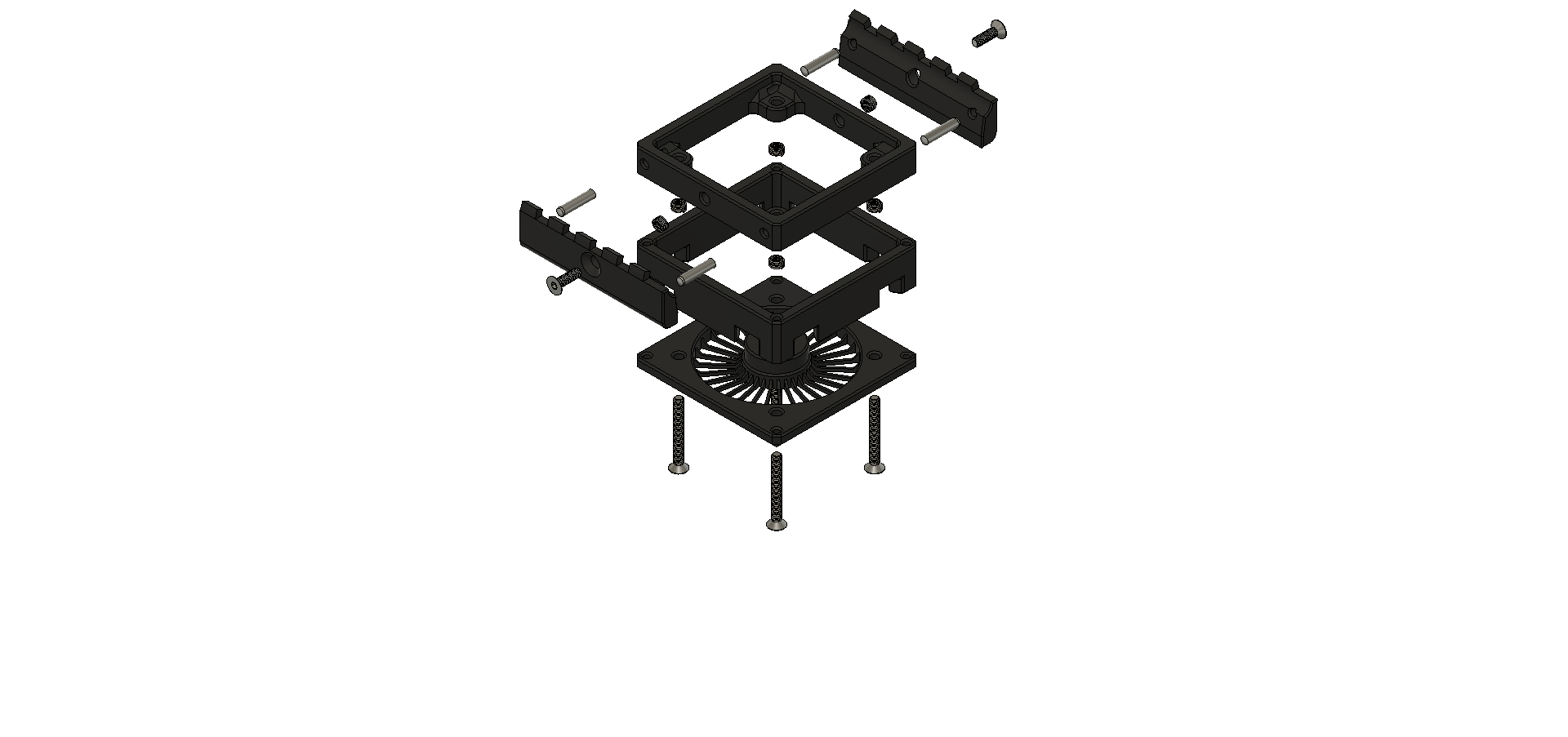

<p>We had during summer time a lot off issues because of overheating. </p><p>So i designed an easy Mounting Fan Housing with 24V DC Fan. Originally that equipment is passivly cooled over Steel Housing.</p><p>Once printed the cover, I tool a heat gun slightly heat up the model and once smal printed connectors to center got melted Press Flad the Cover. Then it looks like the one on Picture. </p><p>I used: </p><p>8 x Threat Inserts M3 </p><p>4 x Zylinder Pins 3 x 14mm (first glues them in case. </p><p>4 x M3 x 10mm Stainless Steel Hex Drive Flat Head Screw</p><p>4 x M3 x 25mm Stainless Steel Hex Drive Flat Head Screw</p><p>1 x Fan 50x50x25 24VDC </p>
