ExpressLRS EP1 Receiver Antenna mounts
prusaprinters

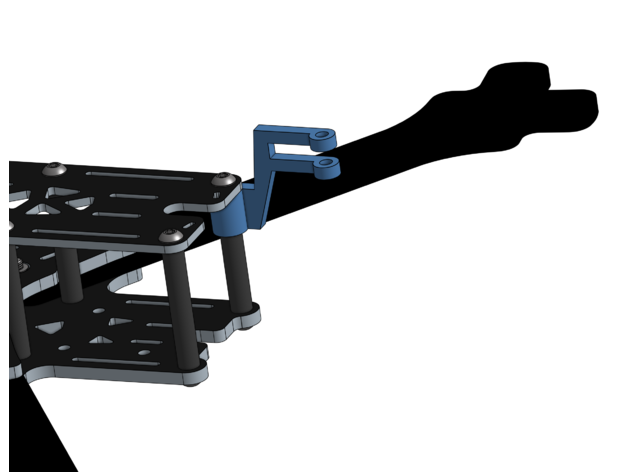

<p>This is a collection of antenna mounts for the ExpressLRS 2.4 EP1 receiver from Happymodel that I designed to use in my TBS Source One frame, but I guess they work in any frame with 5mm diameter spacers.</p><p>There are three options:</p><ol><li>Rear Vert Short. For mounting the antenna vertically in the rear spacer (5mm diameter). This is useful when using a long wire antenna.</li><li>Rear Vert Long. For mounting the antenna vertically in the rear spacer + a mount for the receiver. This is useful when using the short antenna provided by Happymodel. The receiver stays close to the spacer. It is a tight fit, and it seems that the receiver it's not going anywhere but take your precautions.</li><li>Bottom Mount. For mounting the antenna in the bottom of an arm.</li></ol><p>They were designed to be printed without supports. I printed them in TPU, 0.12 mm height to have more details in the holes and in the receiver case (long version).</p>
