EPOS IMPACT DW Headset Holder Improvement

prusaprinters

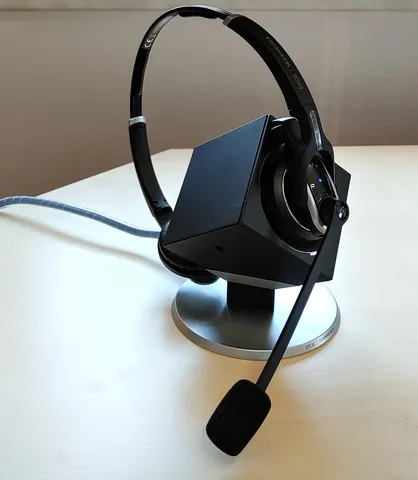

I made some modification to the headset holder from EPOS Sennheiser model as for the 2 ears headphone the microphone and one earphone always touched the ground.And I didn't want to clean the desk with my headset microphone… :-) Needed MaterialM4x25mm countersunk head screw to replace the original M4x12mm type. It will lift the cube of the base station by 15mm. Assembly InstructionsThere is a countersunk screw in the middle of the base plate which you can feel by touching the foam on the bottom. Here you have to cut out a part of the foam.Now you can unscrew the base plate.Add the new foot an screw it together with the 25mm replacement screw. PrintingFilament: For aesthetics I used XPETG, but basically all types should doInfill: I used 30% which seems to be enoughSupport: Foot is designed to be easily printed without any support
