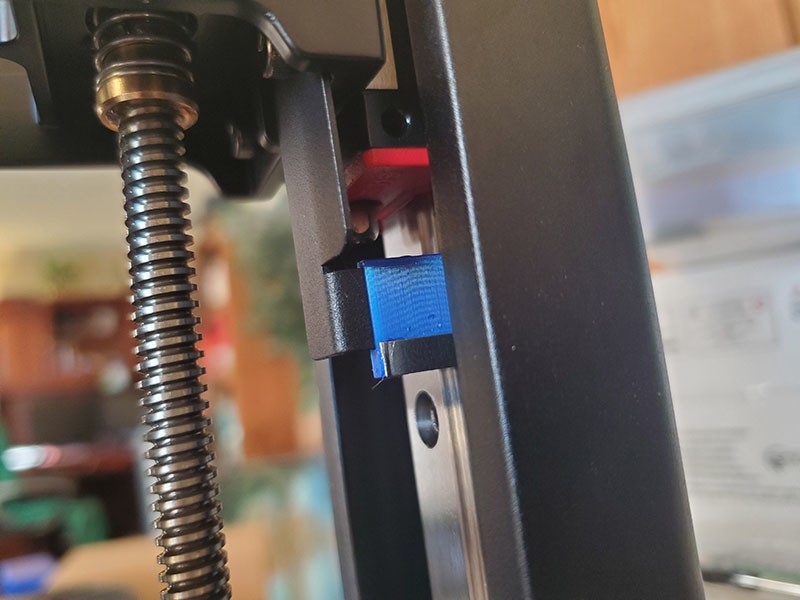

This clip extends the end stop bracket of a Mono 4K down to account for the added thickness of the FulaFlex Resin magnet and plate. The FulaFlex install adds about 3mm to your Mono 4K build plate, and it will ground into your screen on homing if you do not adjust the end stop bracket. The Fulament website offers instructions and links to spacers for several models, but they all have end stops that attach with vertical screws. The 4K end stop has a different bracket that attaches with horizontal screws, so none of the other spacers would work to add the needed bit of extension. I super-glued a small bit of thin metal to the lower edge of the clip to trigger the optical end stop (I just cut the actuator off an extra mechanical end stop I had laying around). *NOTE: a community member indicated in the comments that just wrapping a bit of electrical tape around the clip is sufficient to trigger the sensor. :) The clip has a raised button on one edge so you can identify the edge that goes up when the clip is installed.
