Ender 5 Plus Rear Frame Cable and PTFE Tube Holder Guide
prusaprinters

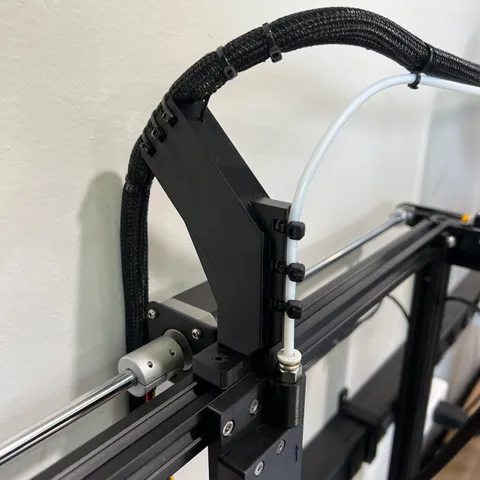

Description:This rear frame mount guides the cables and PTFE tube from the rear of the Ender 5 Plus frame to the hot end. This is designed to pair nicely with my filament sensor mount when deleting the bowden extruder. The hole can be used to insert filament to help support the loom. Printing:0.4mm Nozzle, 0.2mm height, with brim, ASAFlashForge ASA: amzn.to/3szLrtPAlternatively, PETG or PC can be used. PLA will probably be okay as a substitute, but is not the best choice for this.Parts:PTFE Tubing 2mm ID x 4mm OD: amzn.to/3KTDAhmBraided Wrap Sleeving Wire Loom: amzn.to/3sACYXACable Ties: amzn.to/3EiuAi7(2) of M3x8mm Socket Head Cap Screw: amzn.to/3EdhXof(2) of M3 T-Nut: amzn.to/44tlvh3Related Models:Biqu H2 V2 Cable Holder Support Guide Note: Amazon links are affiliates. This is a clean sheet of paper model that was inspired by this design.
With this file you will be able to print Ender 5 Plus Rear Frame Cable and PTFE Tube Holder Guide with your 3D printer. Click on the button and save the file on your computer to work, edit or customize your design. You can also find more 3D designs for printers on Ender 5 Plus Rear Frame Cable and PTFE Tube Holder Guide.
