Ender 3 Sprite Extruder Cable Hanger

prusaprinters

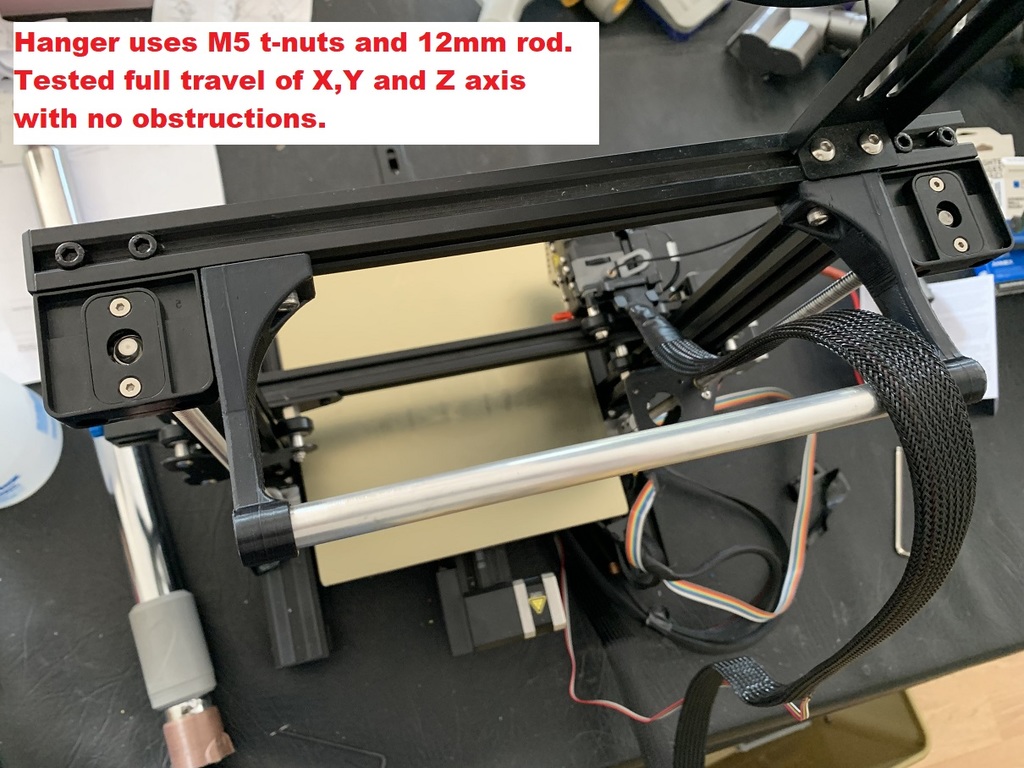

<p>A Cable Hanger for the Ender 3 V2 Sprite Extruder Upgrade.</p> <p>Recommend purchasing a Z axis upgrade kit like below.</p> <p><a href="https://www.ebay.com.au/itm/254864914714">https://www.ebay.com.au/itm/254864914714</a></p> <p>I used 5mm t-nuts but 4mm should work.</p> <p>Anyone who is thinking about upgrading their ender 3 V2, I recommend doing this.</p> <p>One last thing, the sprite extruder is designed for the Ender 6. the bl/crtouch is included in the flat ribbon cable.</p> <p>I would look at purchasing a cable for it to plug into the socket behind the extruder.</p> <p>This is what you need.</p> <p><a href="https://au.element14.com/molex/15134-0501/cable-assy-5pos-rcpt-rcpt-100mm/dp/2913936?ost=2913936">https://au.element14.com/molex/15134-0501/cable-assy-5pos-rcpt-rcpt-100mm/dp/2913936?ost=2913936</a></p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Creality</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>Ender 3</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>Yes</p></div> <p><strong>Resolution:</strong></p> <p>0.2</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>20</p></div> <p><strong>Filament:</strong> Pantech PLA Does Not Matter How I Designed This ===================</p> <p><strong>Design Process</strong></p> <div><p>Worked out a way to raise the flat ribbon cable for the sprite extruder for my Ender 3 V2.<br/> It was flopping behind the bed and kind of look bad. <p>This was the second design, due to the first creating a tight point on maximum z-axis.</p> <p>I position the hanger approximately 80mm behind the top mount and raised it on a slight angle.</p> <p>There is a lot of length on the ribbon cable to fit this.</p> <p>Use 5mm t-nuts and bolts, and a 12mm rod.</p> <p>The rod I used was some aluminium rod, but you can try any type. Just don't force it!</p> </p></div></p></p></p> Category: 3D Printer Accessories
