Ender 3/CR10 - Tool mount

prusaprinters

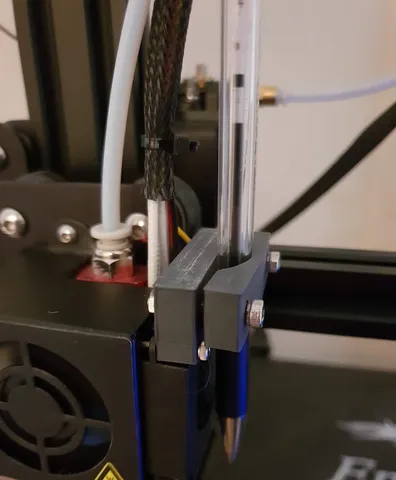

Can be used to mount a pen, soldering iron (for wood burning), wood burning pen or whatever else you can think off. I know there are other probably stronger ways (although this way is pretty strong) of doing it but I wanted a way that meant you didn't need to take off the hotend. The cutout is about 18mm wide. Use this guide to learn how to create the gcode but remember to set your Z offset (if needed) in the path to gcode part. Print Settings Supports: No Resolution: 0.2 Infill: 50% Post-Printing You'll need some M3 bolts and nuts for the clamp. You might need to drill out the M3 holes as they were a bit tight for me (still usable but annoying) I did manage to crack the part that connects to the fan bolts (when using the original version) but that might have just been me tightening it too much, I have created a thicker version (which I would recommend you use) that should be stronger but you would need to replace the original fan mount bolts with longer ones (they are M2, I used 12mm long ones) Category: 3D Printer Parts
