Emergency Stop for Ender 3 (Siemens Sirius ACT & Wago Winsta 890-702)
prusaprinters

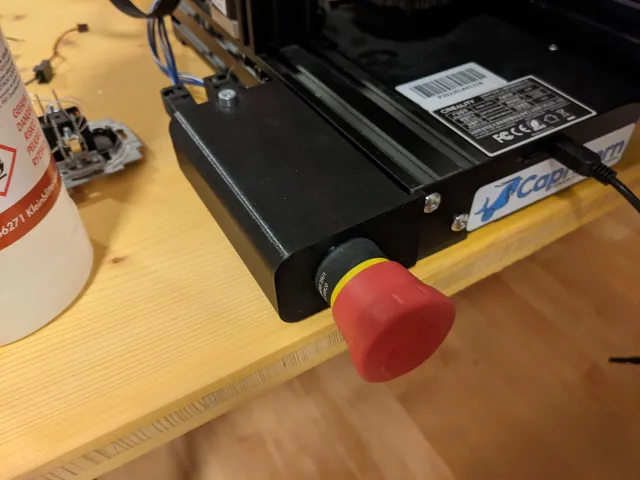

This is simple housing for a Siemens Sirius ACT EStop that will fit on 4040 VSlot profiles on the Ender 3 and be secured by the sheet metal control board compartment. The two rectangular cutouts on the back cover are made to fit two WAGO WINSTA 890-702 sockets. The back cover is held on by two M5 bolts.I personally am using it to switch after the power supply as the (meanwell) PSU will have enough power left in its capacitors to run the printer for about a second after the power is cut. Parts list:1x Siemens SIRIUS ACT 3SU1100-1HB20-1CG0(screw terminal) or 3SU1100-1HB20-3CH0(spring type terminal)1x Siemens SIRIUS ACT 3SU1400-1AA10-3CA0(screw terminal) or 3SU1400-1AA10-3CA0(spring type terminal)2x WAGO WINSTA 890-7022x WAGO WINSTA 890-1121x 1,5mm^2 dark blue wire (for DC 24V+) (if AC 230V use black for phase)1x 1,5mm^2 dark blue/white wire (for DC 24V-) (if AC 230V use light blue for neutral)2x M5 x 16mm bolts
