Elecraft DL1 Wideband Dummy Load Enclosure

prusaprinters

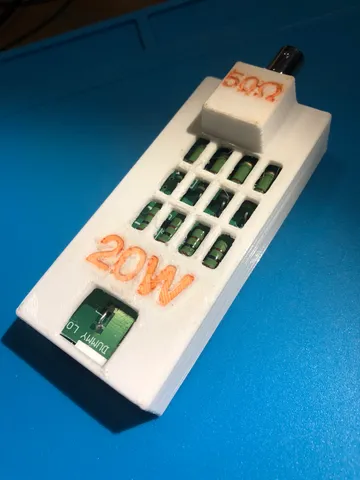

A single piece enclosure for the Elecraft DL1 Wideband Dummy Load kit.This close-fitting enclosure is open on the bottom, to allow use of the rubber feet included in the DL1 parts kit. It has an open grill over the resistor grid to protect fingers while allowing heat dissipation, and a cutout-out to allow access to the TP1 and GND pads for sampling RF power.Although use at the rated power and duty cycle should not produce excessive heat dissipation, I recommend printing this enclosure using a high-temperature filament such as PETG or ABS.73 de KE8SMQ
