E3D V6 cr10 / ender3 modular mount

prusaprinters

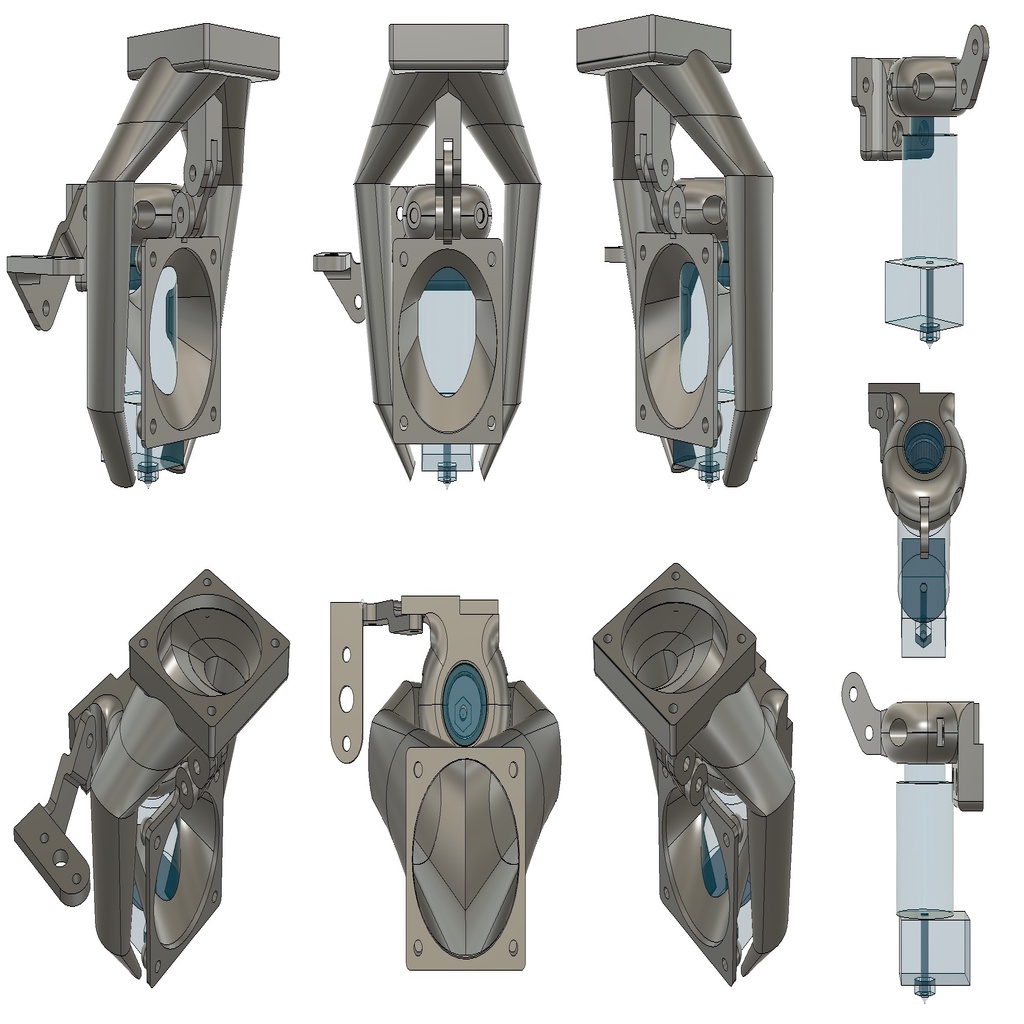

<p>I made this support because I had great difficulties with the existing ones: they are too tight for my hotend, although I have checked it has standard measures.<br/> The support ensure a great grip, because it need bolts with nuts for the closure, and can be installed on CR10 also using screws with higher head.</p> <p>This support has been designed to be suitable to existing fan/bltouch systems. Anyway I give you the ones I have designed as they can be easily installed/uninstalled without removing the other components.</p> <p>Fans must be 40mm.</p> <p>Probe XYZ Offsets:</p> <ul> <li>X: -45</li> <li>Y: -2</li> <li><p>Z: -0.85 bolts &amp; nuts needed:</p> </li> <li><p>for mount &amp; closure: (3) M3x8mm + (2) M3x12mm + (2) M3 nuts</p> </li> <li>for bltouch: (1) M3x8mm</li> <li>for hotend fan: (4) M3x16mm + (1) M3x12mm + (1) M3 nuts</li> <li>for nozzle fan: (4) M3x16mm + (1) M3x12mm + (1) M3 nuts Give me your feedback. Thanks ;)</li> </ul> <p><strong>12/27/2019 update</strong>: I redesigned the bltouch support because sometimes, during the print, it could hit the printing object and break. Now it's a little bit higher and more strength.</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Creality</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>CR-10S</p></div><strong>Rafts:</strong></p> <p>Doesn't Matter</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>Yes</p></div><strong>Resolution:</strong></p> <p>0.2</p> <p><p class="detail-setting infill"><strong>Infill: </strong> <div><p>50</p></div></p> <p><strong>Notes:</strong></p> <p>Print with supports only from build plate, 20%, 50°</p> <p>Material: PETG or ABS</p> </p></p></p> Category: 3D Printer Parts
