E3D V6 Bowden Carriage Mount - Fan and BLTouch Mount

prusaprinters

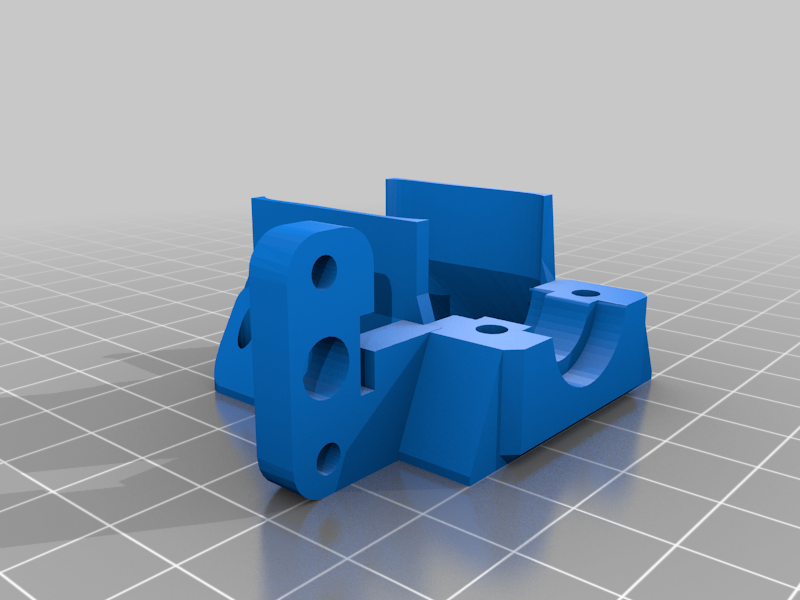

<p>Remixed the extruder fan mount from the "E3D-V6 Bowden Carriage Mount for 2020 V-slot X-Axis" design to be used with the (also remixed) E3D-V6 cooling duct (<a href="https://www.thingiverse.com/thing:4254210">https://www.thingiverse.com/thing:4254210</a>).</p> <p>When assembling the carriage mount with the cooling duct and the extruder fan mount, mount the fan duct first! Reaching the screws is otherwise much more fiddly.</p> <p>define X_PROBE_OFFSET_FROM_EXTRUDER -32</p> <p>define Y_PROBE_OFFSET_FROM_EXTRUDER 0</p> <p>Final result can be seen on the attached images.</p> <h3>Print Settings</h3> <p><strong>Rafts:</strong></p> <p>Doesn't Matter</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div> <p><strong>Resolution:</strong></p> <p>0.2</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>40%</p></div> <p><strong>Filament:</strong> Generic PLA/ PETG <br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>Printed mine in PETG because of the near extruder.</p> Carefull when removing strings etc, the cooling duct is very fragile at the side. </div></p></p> Category: 3D Printer Parts
