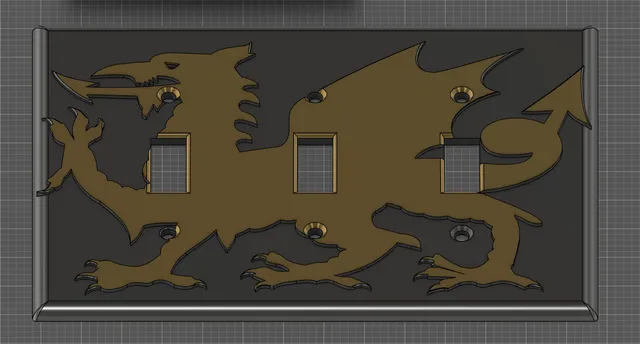

Dragon Wales 3-Gang Light Switch Cover

prusaprinters

Print    Filament - Inland PLA PRO Black and Silk GoldDiameter - 1.75mmExtrusion Multiplier - 1Density - 1.25Nozzle Temp - First Layer - 219*C , Other Layers 219*CBed Temp - First Layer - 57*C , Other Layers 57*C    Infill 25%Rectilinear600% anchor100% anchor lengthTop - Archimedean ChordsBottom - ConcentricCombined every 20 layers    Supports - Gcode has supports painted on the middle 0.0375" for screw spacing with Top Z contact set to 0.2 Detachable     Misc SettingsSolding Layers - Bottom 2, Top 4Perimeters - 3Layer Height - 0.15mmFirst Layer Height - 0.25mmThick Bridges - YesDetect bridging perimeters - YesFill Gaps - GapsSeam Position - AlignedPerimeter Generator - ArachneFuzzy Skin - No Ironing - Enabled , All top surfaces, 12% Flow Rate and 0.1mm between ironing passes (Also offer a iron disabled version as well see below in file notes, decreases print time)Skirt  5 Loops at 6mm distance and 1 layer height    Speed SettingsPerimeter - 60mmSmall Perimeter - 15mmExternal perimeter - 50%Infill - 80mmSolid Infill - 20mmTop Solid Infill - 12mmSupport material - 60mmSupport material interface - 100%Bridges - 60mmGap Fill - 15mmIroning - 20mm - If enabledTravel - 130mmZ - 0mmFirst Layer Speed - 30mm
