Double Pill Box

prusaprinters

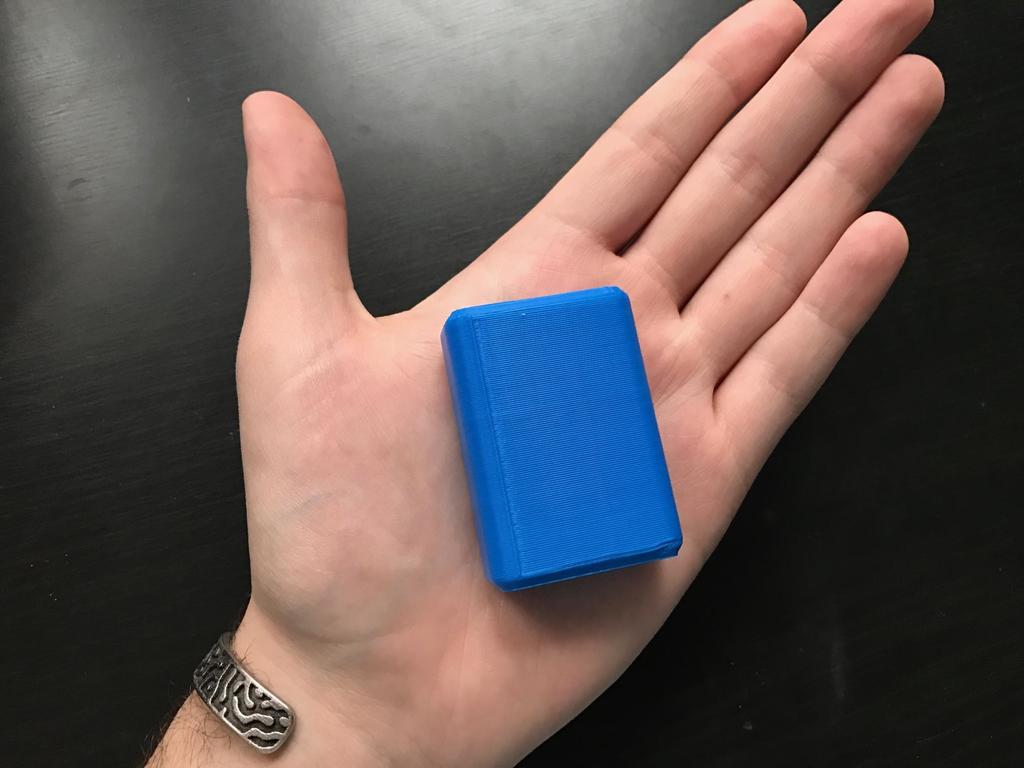

<p><strong>Update 1/3/2019:</strong> I added the STEP file for this model to the files list. Feel free to play around with it, modify it, make it better. And please, if you make any changes or improvements, upload it as a remix so others can see and enjoy it, too!</p> <hr/> <p><strong>Update 2/21/2017:</strong> Improved tolerances between the body and lid to make the parts move more smoothly and made slight adjustments to the closing action.</p> <hr/> <p>Simple two-chambered pill box. The box is compact and features a sliding lid that reveals only one of the pockets at a time for easy use.</p> <p>Includes two lids: one basic, blank one and one with numbers on it.</p> <p>For volume reference, each section of the box perfectly fits the contents of a travel-sized Advil bottle. The pockets are both 20mm x 20mm x 50mm.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Wanhao</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>Wanhao Duplicator i3 V2</p></div> <p><strong>Rafts:</strong></p> <p>Doesn't Matter</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div> <p><strong>Notes:</strong></p> <p>This is a pretty straightforward print. You can see from the photos that I got a bit of under-extrusion and it still works fine. Print both pieces as-is with no supports and then slide the lid in place. There is a small notch on the top of the box that prevents the lid from coming off so you will have to slide the lid over that initially -- I find an easy way is to use a fingernail or thin piece of plastic to guide the lid over the notch.</p> </p></p> Category: Containers
