Door holder with screw cover

Door holder with screw cover

prusaprinters

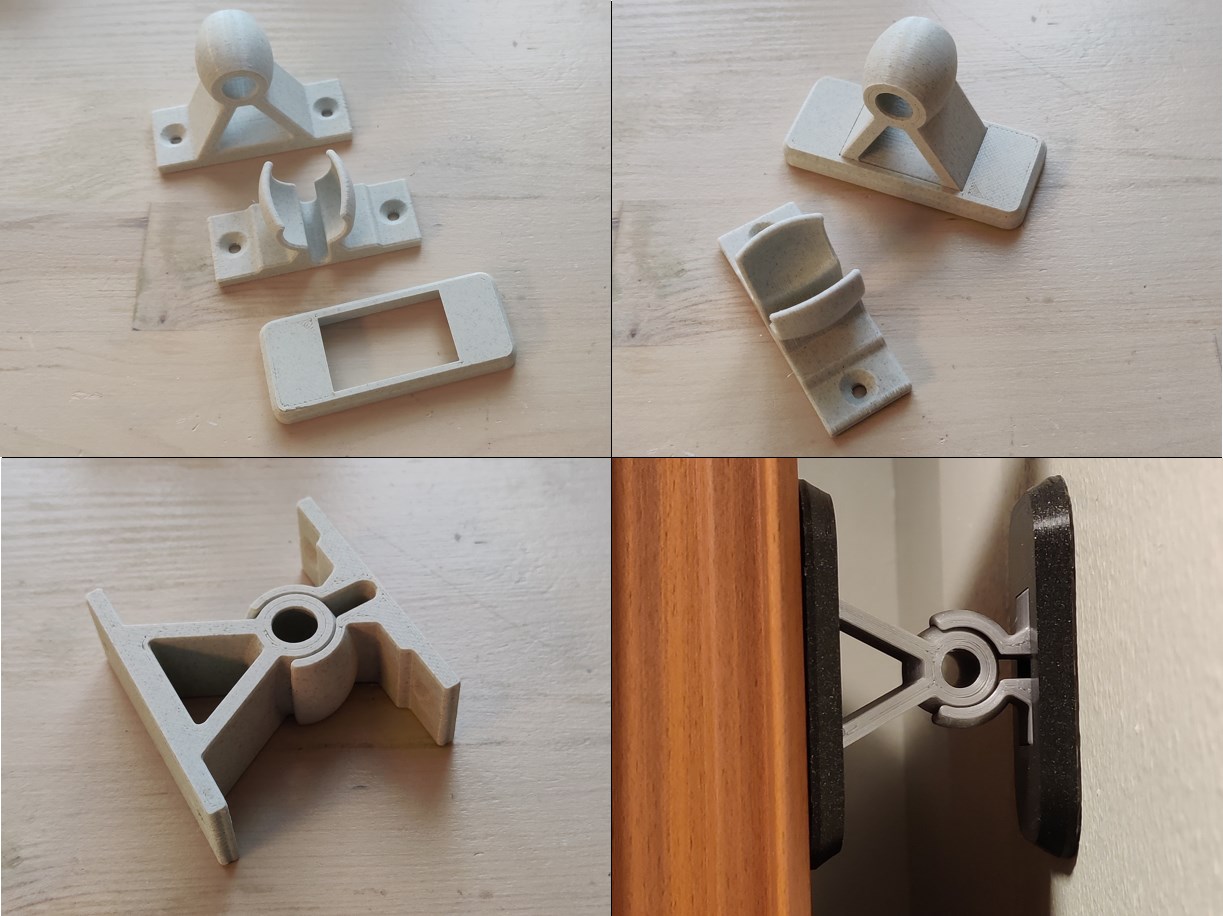

<p>This is a sturdy door stop with door hold/catch, with softer edges. I was originally using the original stop on the floor trim, but after stubbing my toe on it I wanted something less sharp. In the end I mounted the stop on the wall away from the floor, but I would still believe that this version still is a bit easier on the toes.</p><p>Two size covers are included to hide the countersunk screws (small cover) or to add more surface area for adhesive tape (large cover). I used the larger cover and double sided sticky tape to hold the apartment door up, which is a rather thick and heavy reinforced security door. I mounted the stop vertical for this door, which works alright if the door and wall are more or less parallel.</p><p>Three distances between door and wall are available, 100mm (~4"), 64mm (~2,5") or 48mm (1,9"). This is decided by which of the “Ball”-models that is used, either “Ball_Extra_Long” for 100mm, “Ball_Long” for 64mm or “Ball_Short” for 48mm.</p>
