Doggy Button
prusaprinters

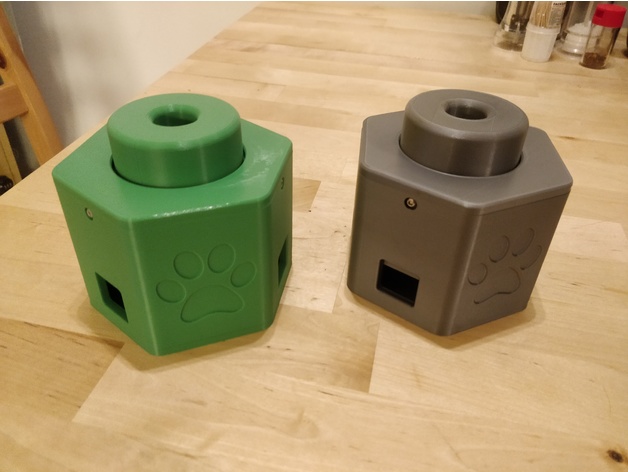

<p>This is a training toy for dogs.<br/> You can put a treat (~1cm size) in the hole at the top that will be dispensed when the button in pushed.</p> <p>Parts<br/> Rubber bands to the length of your liking<br/> 3x M3-inserts (344 size)<br/> 3x M3x10 round head screws<br/> 3x 4cm PTFE tube, 4mm diameter (optional)<br/> 1x Bottom<br/> 1x Insert<br/> 1x Deckel<br/> 3x Plug (for the bottom)<br/> 3x Plug2 (for the top)<br/> (The plugs probably don't matter where you put them, but the one of them is just slightly shorter)</p> <p>Assembly<br/> If you use the optional PTFE tubes so it slides better:</p> <p>Insert the PTFE tubes into the slots at the corners of the "inlay" print<br/> Slowly insert the insert into the bottom part. If it doesn't slide free, sand/cut the outside of the tube a bit until it slides with little resistence</p> <p>Insert the M3 brass inserts as shown with a soldering iron or a matching tool<br/> Assemble the deckel and insert part<br/> Using the top (Plug) and bottom (Plug2) plugs, fix rubber bands between top and bottom<br/> Insert the assembly into the bottom part<br/> Mount with the M3 screws</p>
