DJI OM5 Dual Phone holder

prusaprinters

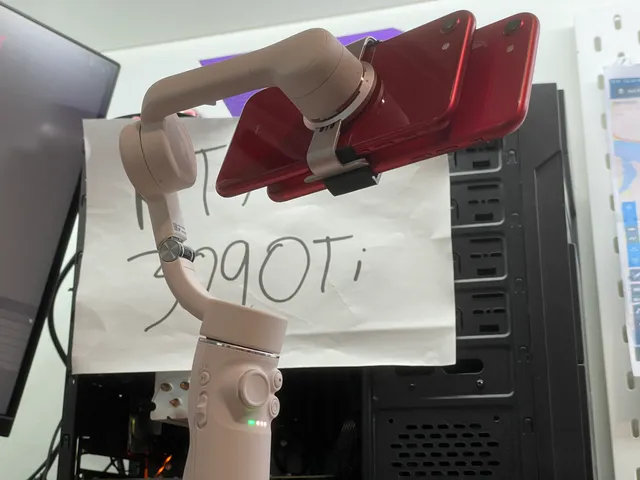

Print with no supports at 0.15mm and 15% infill. PETG is recommended as the mount needs to be a little bit flexible to work properly. So basically I wanted to use the DJI OM5's face tracking feature in livestreams and video calls but it doesn't let you do either of those and the DJI devs said somewhere that they won't implement this feature. This mount gets around that by simply attaching two phones together, one to run the Mimo app and the other to do whatever of your choosing, like obs.ninja to connect to OBS, or a discord/zoom/google meet call to have something similar to the iPad Center Stage feature.This version of the mount only allows you to attach two iPhone SEs (any gen) together or any phone that uses the iPhone 8 chassis (iPhone 6-8), though it's likely straightforward to remix for other phones as well.To use, simply slide your secondary phone with the Mimo app into the curved side of the mount (screen facing inwards to the mount) and turn on the gesture control feature. Then, place your primary phone with any other app onto the rectangle side facing the same way as the secondary, but displace it on the left or right such that the secondary phone doesn't block the front or back camera of the primary. Place the OM5 clip on the curved part of the mount, then attach it to the gimbal. To balance, place the OM5 into standby mode by pressing the M button twice. Shift the two phones left or right in order to ensure that there are no net moments about the pivot along the horizontal axis. Take note that using this mount pushes the gimbal's motors to maximum capacity. The mass of the two phones and the mount of 144g + 144g +6g= 296g exceeds the stated max load of 290g of the OM5, so the gimbal would likely be slightly hindered in its movement speed and maximum angles.Due to my inexperience with Fusion360 it's probably modelled very crudely, so if someone could remix it to make it more efficient that'll be great.
