directional YAGI WLAN Antenna EXTENSION for 2.4 GHz

prusaprinters

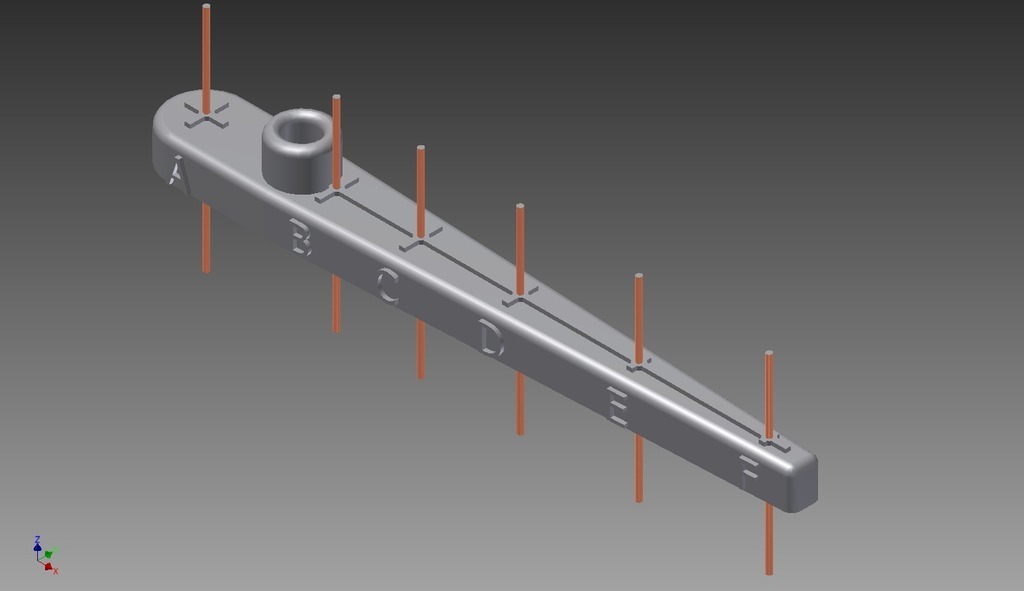

<p>Self made directional WLAN Antenna EXTENSION in YAGI style for 2.4 Ghz WLAN with regular copper rods. To optimize you WIFI environment.</p> <h3> Instructions</h3> <p>Use 0.75 mm² (1 mm diameter) Copper Rods for 2.4-GHz-Antenna-Extension:</p> <p>Position - Length:<br/> A - 60 mm<br/> B - 53 mm<br/> C - 52 mm<br/> D - 51.5 mm<br/> E - 51 mm<br/> F - 50 mm</p> <p>If you want to use 1.5 mm² (1.4 mmm diameter) Copper Rods, shorten the length of the rods around 1 mm.</p> <p>To use 2.5 mm² (2 mmm diameter) Copper Rods, drill bigger holes and shorten the length of the rods around 2 mm.</p> <p>Just center the rods in the holes and fixate them with glue.</p> <p>Place the complete antenna-extension on your accesspoint-antenna and you have a directional WIFI Signal :)</p> <p>The gain should be around 10 (+/- 2) dBi.</p> <p>Have fun :)</p> Category: Other
