Direct drive mount for CR-10 & Ender 3
prusaprinters

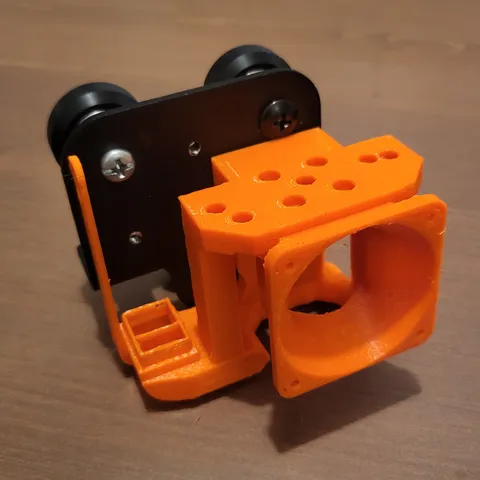

A direct drive mount for most creality printers to allow mounting Dragonfly BMS, Dragon or Mosquito hotends with either Sherpa mini, Orbiter 1.5 or Orbiter 2.0 extruders.It also integrates a 5015 blower fan part cooling duct.Assembly requires the use of M3 threaded inserts.Ideal print orientation is laying down on it's back with tree supports where possible. Update 12/03/22: Adjusted mounting height of orbiter versions so the motor clears the heatsink ductUpdate 13/03/22: Added BLtouch mountUpdate 21/3/22: Swapped heatsink duct to allow use of Mellow NF crazy style clones with mosquito versionUpdate 19/05/22: Added Dragonfly BMS hotend versionsUpdate 29/05/22: Added v1.5 of Dragonfly BMS versions with increased heatsink clearance per user request.
