Direct Drive Mount (Drivinator) for BMG and Satsana on Aquila WITH Cable Chain Mount - thick remix

prusaprinters

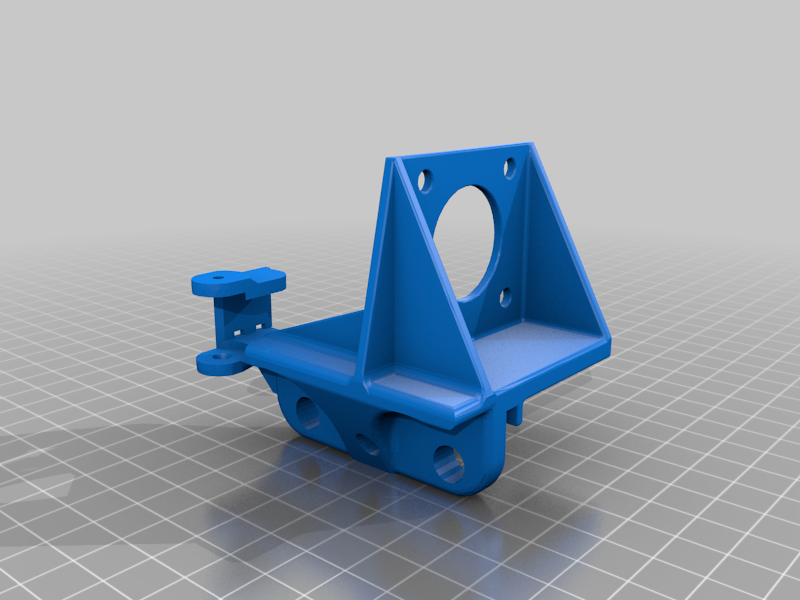

<p>This is a remix of "Direct Drive Mount (Drivinator) for BMG and Satsana on Aquila by 187penguin" and"Voxelab Aquila Satsana Cable Chain Mount - thick remix" by oloffus. Both engage the pulleys on the top of the carriage as support, so remixing them together was required. Unlike other mounts, this one requires removal of the pulleys, and passing them through the part and is far more effective than a clip on version.</p> <p>THIS IS FOR THE THICKER REMIX OF THE VOXELAB AQUILA CABLE CHAIN ONLY</p> <p>Should be printed in PETG or ABS. PLA only if you actively cool the stepper motor with a fan. PLA will melt without a fan on the stepper motor.</p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>Tronxy XY-2 PRO</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div> <p><strong>Supports:</strong></p> <p>Yes</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.20 layers</p></div> <p><strong>Infill:</strong></p> <p>15% 3D fill</p> <p><strong>Filament:</strong></p> Sunlu ABS <p>black</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>This combines the BMG mount that uses the pulley wheels as retention with a strain relief cable chain. Uses the "thicker" remix of the cable chain!</p></div> </p></p> Category: 3D Printer Parts
