Dell QLogic 57810S Dual Port 10Gbps SFP+ Card Low Profile Bracket
prusaprinters

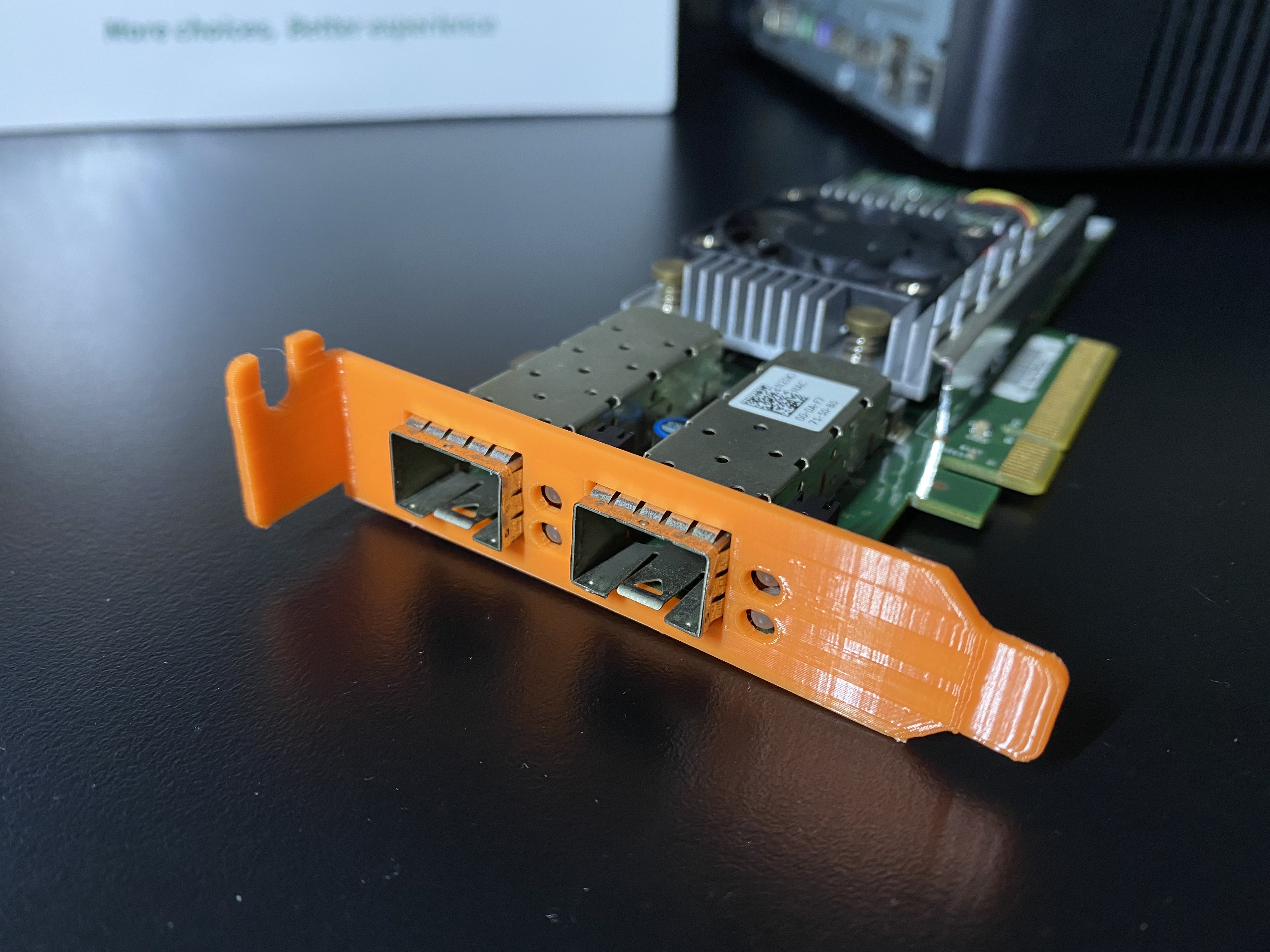

<p>A low profile PCIe bracket for the Dell/QLogic 57810S dual port 10Gbps Network card. The bracket is 1.6mm thick.</p><h3>Printing</h3><p>Print with screw holes for PCB flat on the build plate.</p><ul><li>Material: PLA or PETG</li><li>Print Settings (PrusaSlicer): 0.20mm Quality, 15% infill</li><li>Supports: On build plate only<ul><li>(Optional) A brim may aid bed adhesion</li><li>(Optional) Paint on some supports for the centre of the SFP+ port openings to avoid sagging when bridging.</li></ul></li></ul><h3><strong>Version History</strong></h3><ul><li>Design file V9 - 31 July 2022 - Initial release</li></ul><h3><strong>Credits</strong></h3><p>Thanks to Van Tech Corner (@vantc on the IceWhale Discord server) for allowing me to use the image of the bracket he printed for his card.</p>
