DEGSON DG127 Series 5.0/5.08mm terminal block FullPack

grabcad

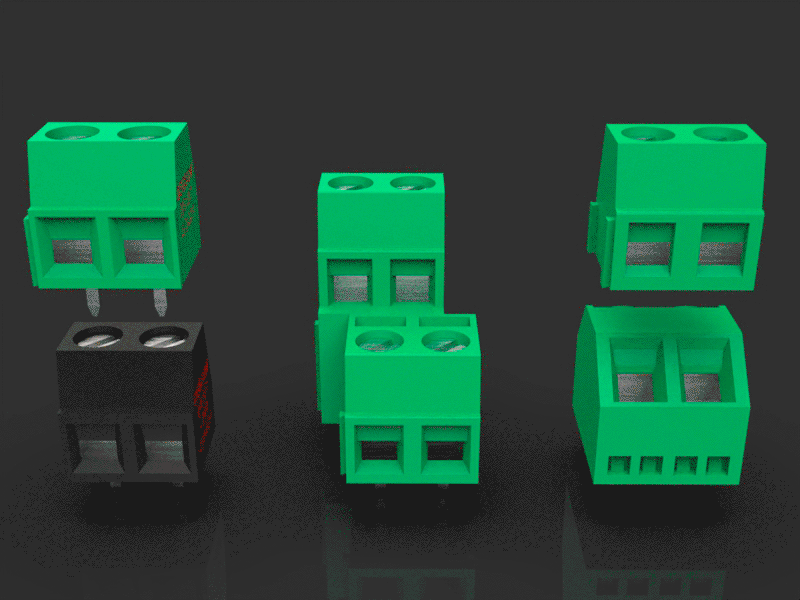

DEGSON DG127 Series 5.0 and 5.08mm pitch terminal block packAll sizes and types + Source files.• Current rating: 12 A AC/DC• Voltage rating: 300 V AC/DC• Temperature range: -40~+105• Applicable wire: 0.5-1.5мм2 IEC26-14AWG ULTypes: • DG127A - 5.0mm and 5.08mm pitch (4-20pin)• DG127 - 5.0mm and 5.08mm pitch (2-10pin)• DG127R - 5.0mm and 5.08mm pitch (2-10pin)• DG127S - 5.0mm and 5.08mm pitch (2-10pin)• DG127-THR - 5.0mm and 5.08mm pitch (2-10pin)You can also create any size you want yourself.The SolidWorks source file is located inside each SOURCE folder.To resize the connector, find the Equations folder at the root FeatureManager (or Click Tools> Equations). Change the "PINS" and "PITCH" value to whatever you want. Enjoy the connector;)
