DC-Converter-Regulator-Case (mainly for the Sunlu Filadryer S1 Fan)

prusaprinters

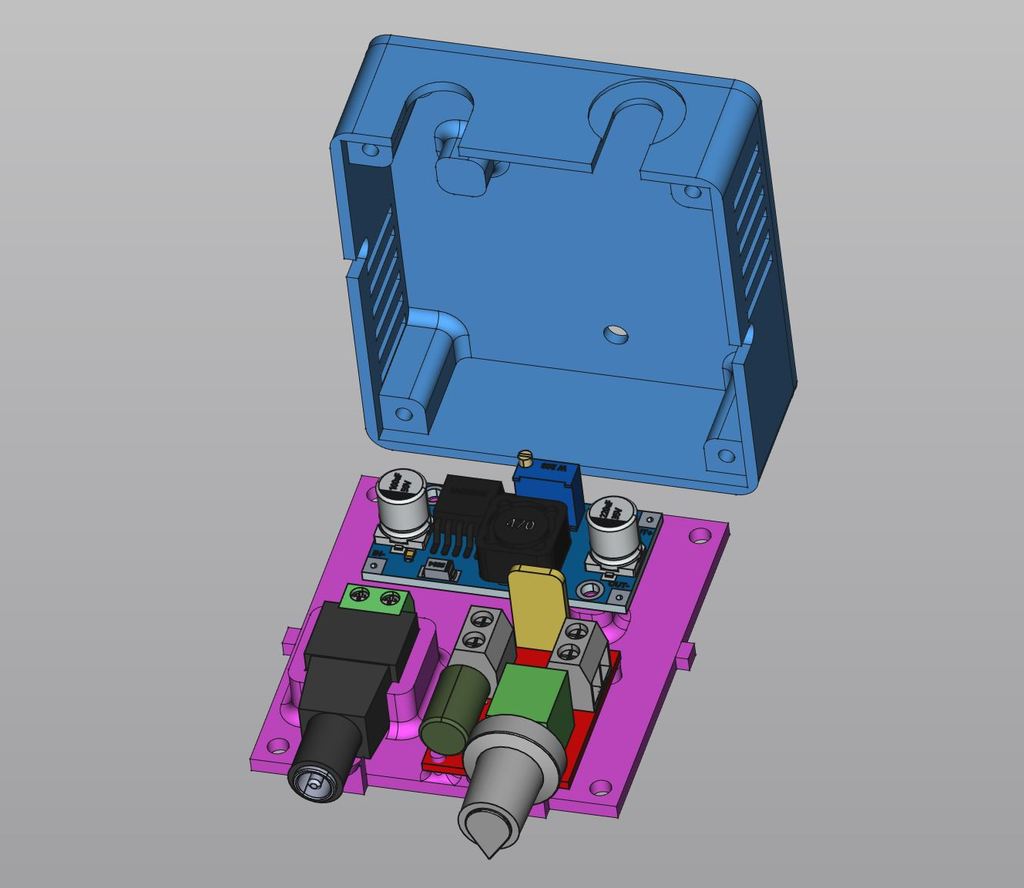

<p>This is a (regulator) case to house the parts that are necessary to control a fan for the Sunlu Filydryer S1 (<a href="https://www.thingiverse.com/thing:4628798">https://www.thingiverse.com/thing:4628798</a>).</p> <p>A DC-DC converter and a motor speed control board are used. Almost every fan can be operated and controlled up to 24V.</p> <p>Parts used:</p> <p>DC-Adapters (5,5x2,1mm): <a href="https://www.amazon.de/gp/product/B07B6999QS?tag=thingiverse09-20">https://www.amazon.de/gp/product/B07B6999QS</a></p> <p>DC Step Down Converter: <a href="https://www.ebay.de/itm/10x-LM2596S-DC-Spannung-Step-Down-Schaltregler-Netzteil-Modul-Wandler-Konverter-/272452882751">https://www.ebay.de/itm/10x-LM2596S-DC-Spannung-Step-Down-Schaltregler-Netzteil-Modul-Wandler-Konverter-/272452882751</a></p> <p>Mini DC Motor PWM Speed Controller: <a href="https://de.aliexpress.com/item/32845855679.html">https://de.aliexpress.com/item/32845855679.html</a></p> <p>Attached is also the FreeCAD file.</p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>Artillery Sidewinder X1</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div> <p><strong>Supports:</strong></p> <p>No</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.2 ... 0.28</p></div> <p><strong>Infill:</strong></p> <p>10 % ... 20%</p> <p><strong>Filament:</strong></p> - - </p></p> Category: 3D Printer Accessories
