D810 LCD mounts
prusaprinters

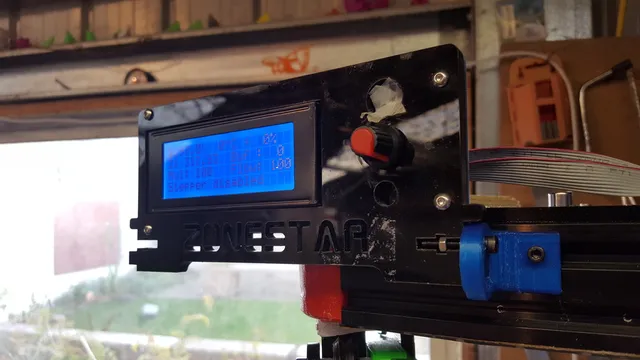

Mounts to attach the LCD to the 2020 top rail of the Zonestar D810 delta printer. Uses the original attachments on the LCD acrylic mounting plate. Attach to 2020 extrusion top rail with M3x20 screws and M3 boat nuts 15 Aug 17: Added V2 mount. This has molding to fit into the 2020 rail, so that a single mount at one end will still hold the LCD horizontal. The same item can be used at either end. Print Settings Printer: ZoneStar D810 Rafts: No Supports: No Resolution: 0.3mm Infill: 25% Post-Printing May need to open out screw holes a little How I Designed This Publicly available at https://cad.onshape.com/documents/57c0c2235b403411c5711f00/w/53940e98183c71269c4aa970/e/87f1bd68252786a99d46d478 Category: 3D Printer Parts
