Customizable Whoop Carrying Case

prusaprinters

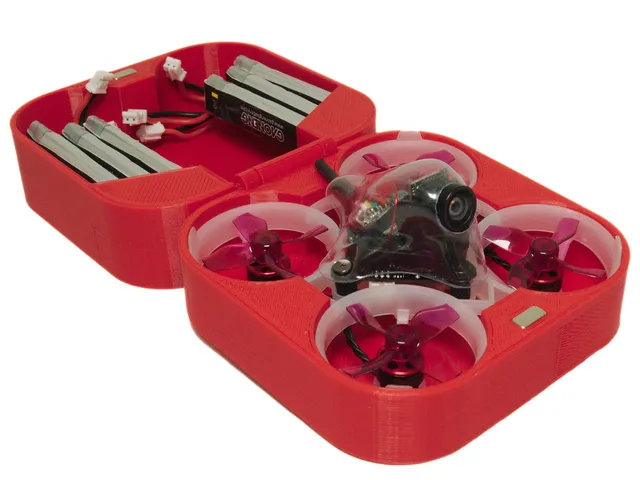

I designed this for my 1S brushless whoop, but this is customizable and can be used with whoops of any size.It is meant to store the whoop and six batteries.I used the following parts for my build:Beta65 Pro Frame with the low profile modBetaFPV 1S flight controllerBetaFPV Z02 AIO cam & VTXHappymodel SE0802 22000KV motorsGNB 300mAh 1S HV batteriesThe case requires two magnets with a size of 8x3x2mm. But you can adjust the magnet size in the customizer too - you could even use a round magnet by changing the magnetShape parameterFor the hinge I used a piece of 1.75mm filament to connect the two halves of the case.If you want to customize it for your own model the following settings will be of interest:hoopDiameter: The diameter of the hoopshoopSpacing: The spacing between the center of the motors, side to side - not diagonal.whoopHeight: The height from the table to the top part of the hoops whoopHeightTop: The height from the bottom part of the case to the top of the canopy. It is easiest to measure that once the bottom has been printed.CompatibilityBetaFPV Meteor65iFlight A6565mm builds based on the BetaFPV Meteor65 FrameMany others - let me know which whoop you used it for and I will add it to the listThe STL's attached are exports of the default settings. When using the customizer, three files will be generated: one with the top part, one with the bottom part and one with both parts.Print SettingsRafts: NoSupports: NoResolution: 0.25Infill: 30%Support MeIf you want to support me, feel free to leave a tip via paypal, or use on of the following affiliate links (no extra cost for you, but I get a commission on everything you buy) to do your shopping.Affiliate Links:BanggoodBetaFPVfpv24Category: R/C Vehicles
