Customizable drain plug

prusaprinters

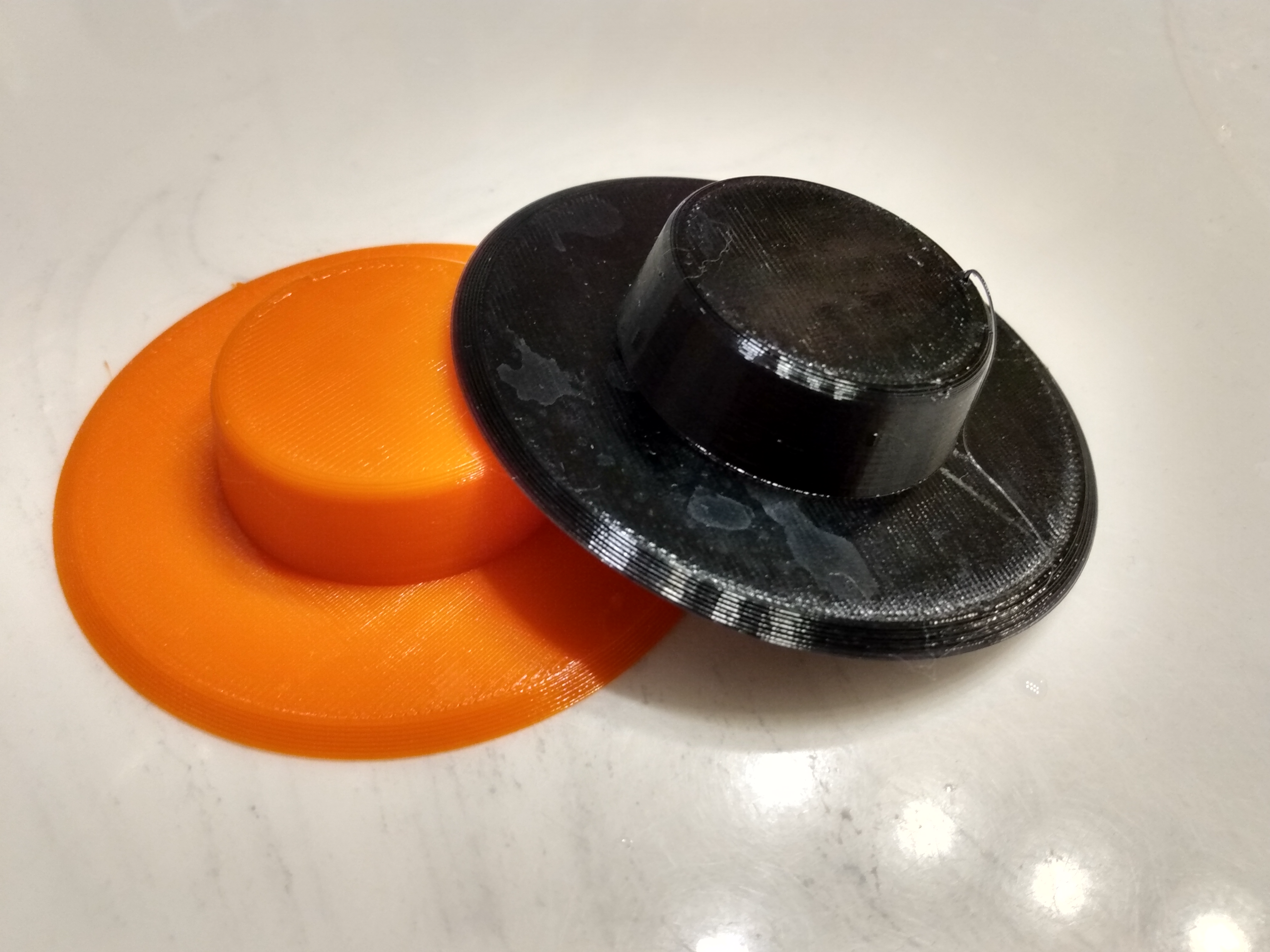

<h3>A quick print and an excuse to use that Ninjaflex for something practical</h3><p>Have a drain in your house that doesn't have a plug for one reason or another? This is precisely what you need. Print it in Ninjaflex or semi-flex filament and slap it in your drain hole!</p><p>The included plug is sized for a drain with a 44mm opening. You will want to measure your drain to make sure it will fit.</p><h3>Not the right size? CUSTOMIZE!</h3><p>Included is a FreeCAD file. You can easily adjust the parameters to make the plug fit your drain! First, open the file in FreeCAD. Then, double-click on the spreadsheet icon under the <strong>Combo View</strong></p><figure class="image"><img src="https://media.prusaprinters.org/media/prints/139359/rich_content/1f6f1233-77c7-400d-9332-a1ddb3ca5e1b/image.png#%7B%22uuid%22%3A%22652f01cc-58b9-4e8c-8fd7-60cf351dd115%22%2C%22w%22%3A330%2C%22h%22%3A267%7D"></figure><p>This will open the spreadsheet. There are only three parameters, each with a description by it. Adjust the parameters to meet the measurements of your drain.</p><figure class="image"><img src="https://media.prusaprinters.org/media/prints/139359/rich_content/cf2bf36c-2bd2-44cb-8411-2307bc0e9860/image.png#%7B%22uuid%22%3A%22ac65af73-db86-435d-83f6-a9a35fc01991%22%2C%22w%22%3A905%2C%22h%22%3A251%7D"></figure><p>Once you have adjusted those parameters, select the <strong>Drain plug</strong> from the <strong>Combo View</strong></p><figure class="image"><img src="https://media.prusaprinters.org/media/prints/139359/rich_content/ed1fe7dc-87e0-4bc3-9504-56bc1fbf9f26/image.png#%7B%22uuid%22%3A%2299b6c782-64a8-4720-a7ca-347f17718d1a%22%2C%22w%22%3A312%2C%22h%22%3A157%7D"></figure><p>Now, select <strong>File→Export</strong> to save the plug as an STL or AMF file for slicing.</p><figure class="image"><img src="https://media.prusaprinters.org/media/prints/139359/rich_content/f643441d-ed2c-4a62-9564-e3c7d1c217f6/image.png#%7B%22uuid%22%3A%225f234a5f-9a4b-4318-ba17-cff2480d5c84%22%2C%22w%22%3A290%2C%22h%22%3A635%7D"></figure>
