Crossbow Prototype Version 1

grabcad

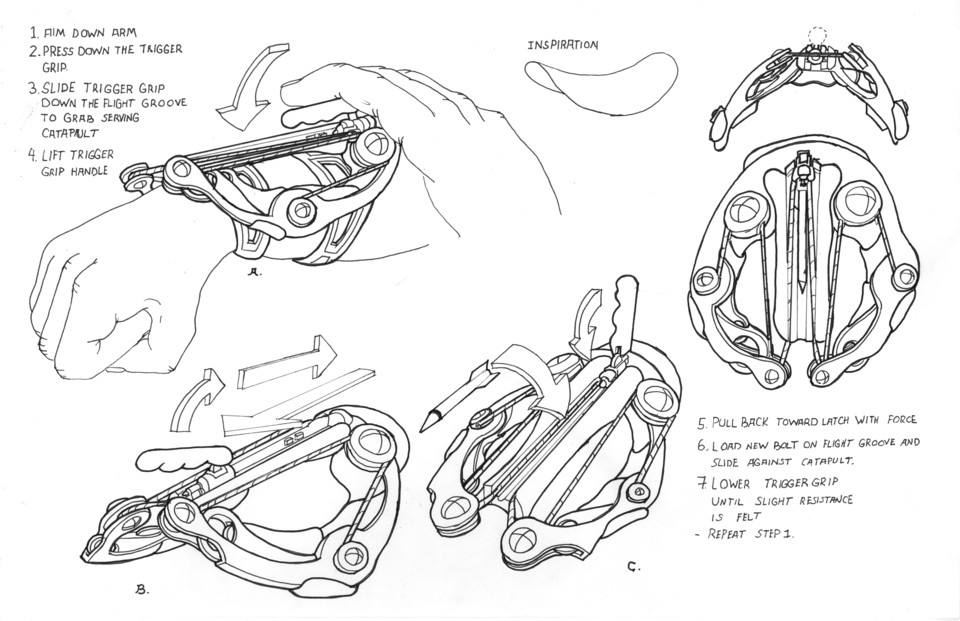

The type 1 design features disassembly of the primary moving components of the bow's assembly, solely for visual examination purposes. The dimensions can be customized for improved functionality, and numerous adjustments are possible. This model was created based on an approximate interpretation of a drawing, with potential issues arising from a poor mirror reflection; however, overall, it offers complete specifications.
