Cranked hinge for 18mm doors

prusaprinters

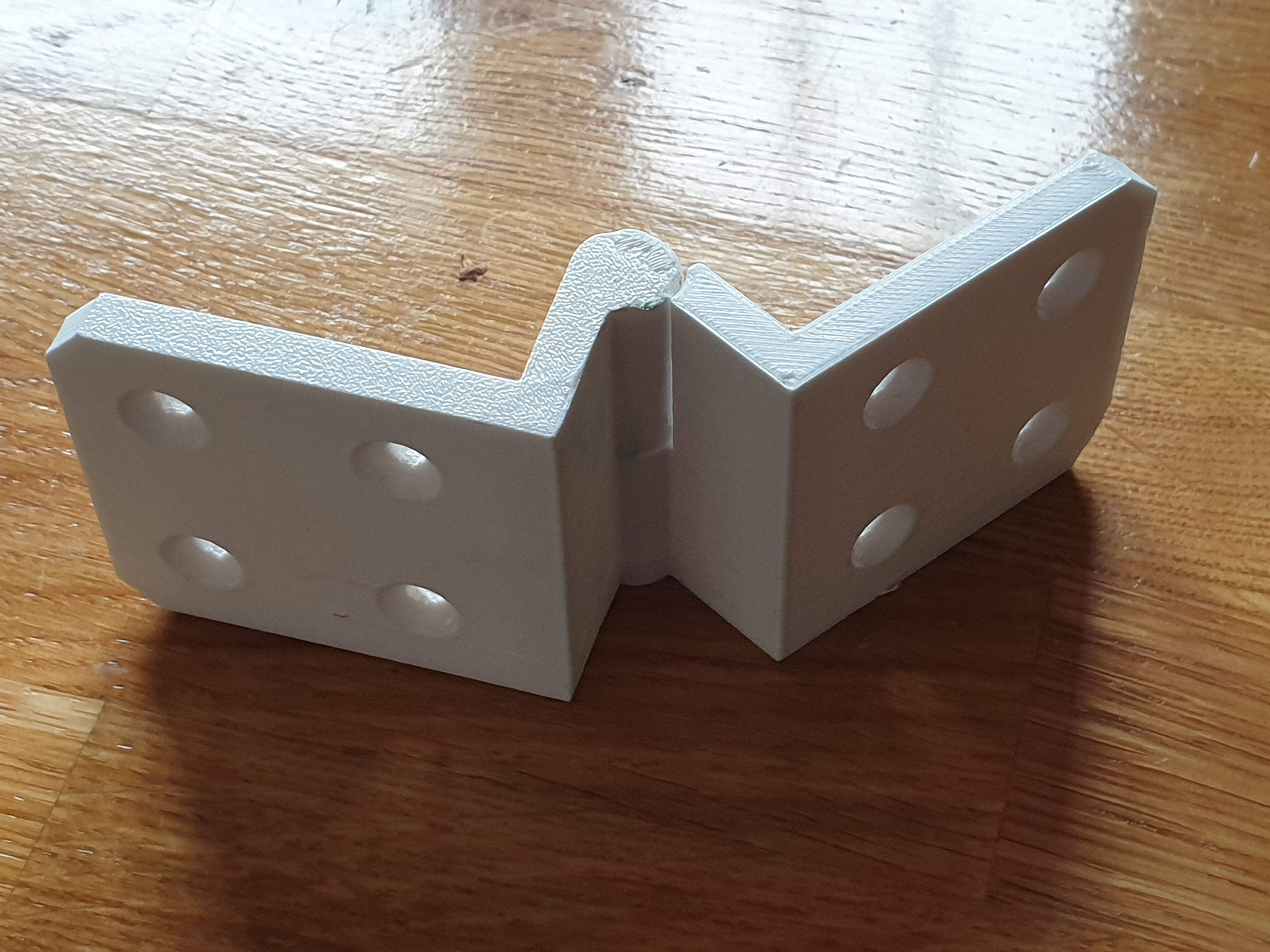

<p>This is a entirely 3d-printed hinge that I've designed to allow an 18mm MDF door to pivot adjacent to an 18mm panel.</p> <p>I used 4 x 4mm x 20mm screws and the model is sized for these.</p> <p>Apart from screws, no additional hardware is required. Make sure you reinforce the infill around where the 'pin' joins the body.</p> <p>If you want the hinge on the right hand side of the door, simply mirror both parts on your slicing software.</p> <p>I've included the .IGES file so you can modify the design to suit your needs.</p> <h3>Print instructions</h3><p>Unassociated tags: 18mm ply, Cranked hinge, door hinge</p> <h3>Category: Replacement Parts Print Settings</h3> <p><strong>Printer Brand:</strong> Prusa</p> <p><strong>Printer:</strong> i3 MK2.5</p> <p><strong>Rafts:</strong> No</p> <p><strong>Supports:</strong> No</p> <p><strong>Resolution:</strong> .2</p> <p><strong>Infill:</strong> 50%</p> <p><strong>Filament:</strong> Amazon Basics PETG White<br/> <strong>Notes:</strong></p> <p>Print each half on its bottom.</p>
