CR-10S Pro OEM Fanduct ExtraMount

prusaprinters

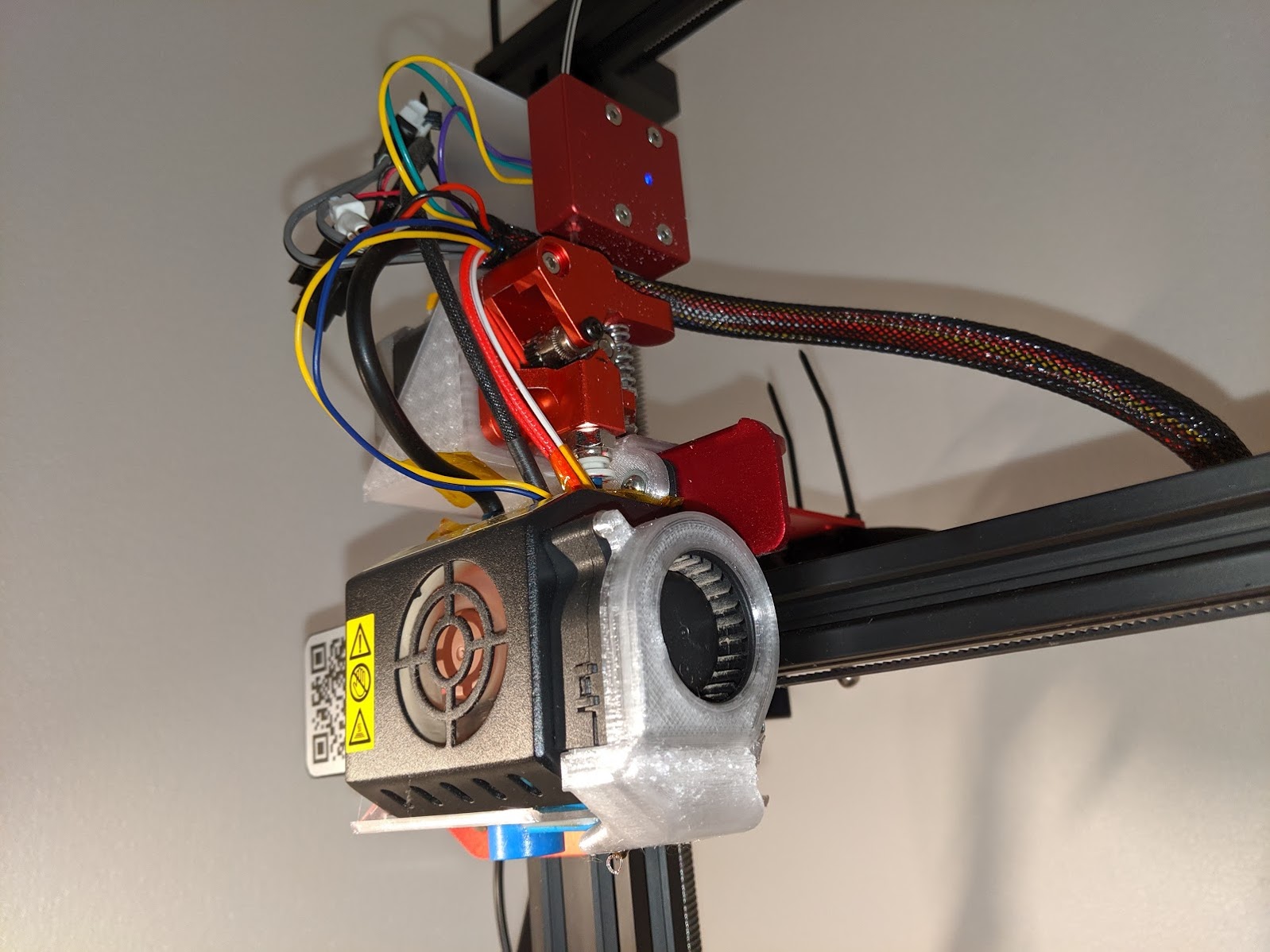

<p>Migrating from thingiverse<br><a href="https://www.thingiverse.com/thing:3952249">https://www.thingiverse.com/thing:3952249</a></p><p>&nbsp;</p><p>This is basically the OEM Fanduct with the additional mounting holes.</p><p>i quite like the fanduct from siteswapjuggler with the additional mounting hole, but looks like it is louder and feel like it provide less airflow and a bit too low.<br><a href="https://www.thingiverse.com/thing:3338694">https://www.thingiverse.com/thing:3338694</a></p><p>i quite like the OEM fanduct air flow uploaded by ampottie , but with only one screw, it is not very secure, and falls off quite easily which can cause failed print.<br><a href="https://www.thingiverse.com/thing:3331312">https://www.thingiverse.com/thing:3331312</a></p><p>the top bit, with the additional mounting hole was taken from thing:3338694 , and the actual fan duct was taken from the OEM thing:3331312</p><p>i just cut and merge those two design together.</p><p>the final result is the OEM Fanduct with the additional mounting holes.</p><p>done in FreeCAD, merged in blender (for some reason, boolean union would not work in FreeCAD)</p><p>p.s if you do want to use the additional two mounting point at the top, you will probably need slightly longer screws. i did not bother, it is a good/tight fit, and did not bother with the two top screws.</p>
