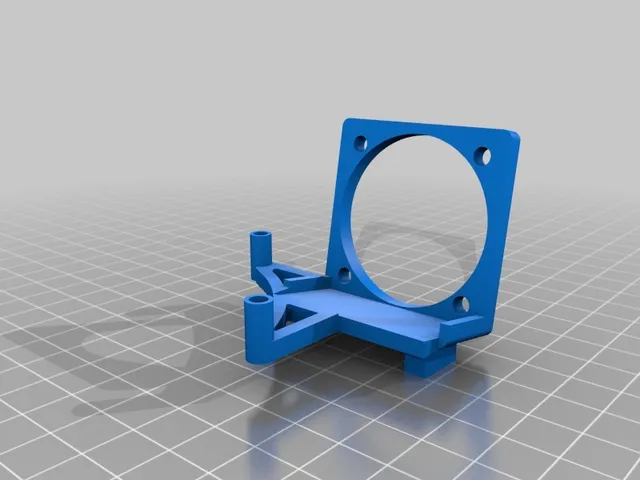

CR-10S Pro Mainboardfan Holder with Screw Mount

prusaprinters

I do like Lonelslander's original design, with a 30 degree fan angle it optimizes air flow more directly towards the mainboard. But I came across 2 major issues printing his fan holder: Screw holes misplaced a little bit, so I can't installed it at all. 3 arms for mounting fan are slightly unfit (I'm using Noctua 4020 fan), it didn't hold the fan tight enough as it supposed to. *UPDATE: Lonelslander has already correct the placement issue with his v2 original design. Maybe it is only my individual case. Anyways I make my modification. The location of mounting screw holes are fixed, now it can be installed properly Thickened 2 mounting hole cylinders a little bit to make sure it can hold the screw torque Deleted 3 fan mounting arms and make 4 screw holes for M3 screws. I trust screws more after all. I assume the original design is perfect for fast mounting, minimize mounting materials. But I can't risk any possible vibrations. Thickened fan mounting plate for more structural strength (especially for screw torque) So here it is. I still highly recommend this design over other vertical designs. Print Settings Printer Brand: Creality Printer: CR10S PRO Rafts: No Supports: Yes Resolution: 0.2 Infill: 20%+ Notes: I use Cura with tree support, works perfectly Category: 3D Printer Accessories
