CR-10S - Bondtech - Mosquito - Noctua - TH3D EZ-ABL - Direct drive mount v2

prusaprinters

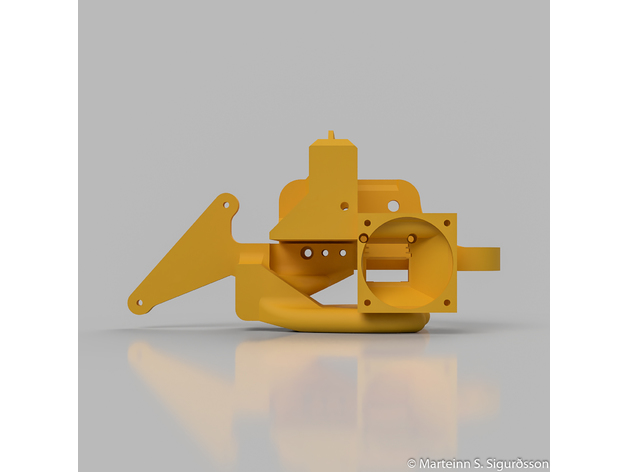

<p>This is an mount on the CR-10S 3D Printer, to Mount a Bondtech BMG and a Slice Engenering Mosquito Hotend in a direct drive configuration on the CR-10S, as well as a 40x40mm Fan mount for part cooling</p> <p>Parts are designed in Fustion 360</p> <p><a href="https://youtu.be/4P0DP0k8bCI">https://youtu.be/4P0DP0k8bCI</a> Video link for the project</p> <p>Please note!<br/> Version 2 of the files have been uploaded.</p> <p>They provide:<br/> New Main mount that allows hotend to be facing the front (for hotend fan mount)<br/> 40x40mm fan adapter for Hotend Cooling<br/> 2 types of Blower style fan mount - Direct airflow and semi-circular fan duct<br/> 3 part Adapter for mosquito hotend to clamp inside the Bondtech extruder.<br/> 1 part goes up into the Bondtech, one goes in the small circular hole in the mosquito, and one is the main adapter that screws onto the mosquito</p> <p>Probe Offsets:</p> <p>define X_PROBE_OFFSET_FROM_EXTRUDER 40 // X offset: -left +right [of the nozzle]<br/> define Y_PROBE_OFFSET_FROM_EXTRUDER 0 // Y offset: -front +behind [the nozzle]<br/> define Z_PROBE_OFFSET_FROM_EXTRUDER 0 // Z offset: -below +above [the nozzle]<br/> define MIN_PROBE_EDGE 20</p> <h3>Print instructions</h3><p>Print in PETG or other material that can handle more heat than PLA</p>
