Copper stamping

grabcad

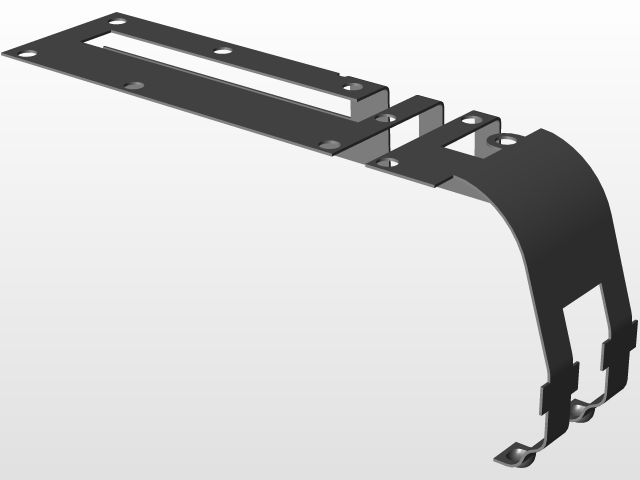

This product features a material of Copper phosphor 1/2H with Copper Phosphor copper, boasting a thickness of 1.5mm and nickel plating throughout its body at 1um; the contact points have an additional 0.075umm plating. The GPS Cell Antenna consists of two parts, both made from the same high-quality Copper phosphor 1/2H material with a thickness of 1.5mm and nickel plating at 1um, while contact points have an added 0.075umm plating. The Metal Shield's bottom frame is constructed from CRS material with a thickness of 0.2mm, and a thin plated layer of 1.54umm. The top part utilizes SUS 304 FH material with a thickness of 0.3mm. Lastly, the Super CAP Shield features Berylium Copper material with a thickness of 0.2mm.
