Cooling Fan/Shroud with 4cm Blower and Sensor for Wanhao D6/Ultimate

prusaprinters

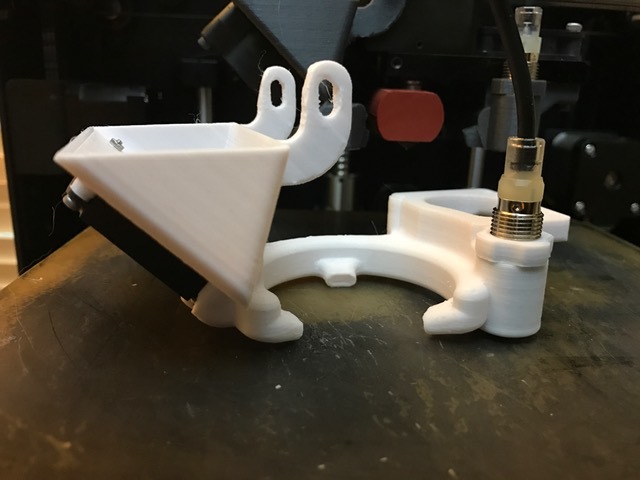

<p>This shroud is printed in two parts that slide together. Included is a M12x1mm nut for the proximity sensor. You also need to print two of the 5x6mm posts and remove a small bridge between the holding posts for the fan on the shroud.</p> <p>I used a GDStime Technology 24V 0.1A 40mm blower. At 100% the output is about what a 50mm blower (<a href="https://www.thingiverse.com/thing:2235389">http://www.thingiverse.com/thing:2235389</a>) does at 25-30%.<br/> 2x 10mm M2 and 2x 12mm M2 and nuts to fix the Fan in place</p> <p>The probe is the Omron Manufacturer Part #: E2B-M12KN08-WP-B1 2M which is PNP and it works with a 7805 to reduce voltage down to 5V and the PNP Configuration.h of the Marlin duplicator 6 firmware. This probe has a working distance of 8mm in a M12 form factor. Screw the probe in so that it is flush with the bottom of the shroud. This setup works with a 1mm PEI sheet glued on the build plate.</p> <p>Same position as in 1bigpig's probe mount <a href="https://www.thingiverse.com/thing:2081168">http://www.thingiverse.com/thing:2081168</a> where you also find the description on how to set up the probe.</p> <p>Empiricus@Dremomys</p> <h3> Print Settings</h3> <p><strong>Supports:</strong></p> <p>Yes</p> <p><p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.150mm</p></div><strong>Infill:</strong></p> <p>70</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong> </p><div><p>PETG</p></div></p> </p> Category: 3D Printer Parts
