Conscendo Wheel

prusaprinters

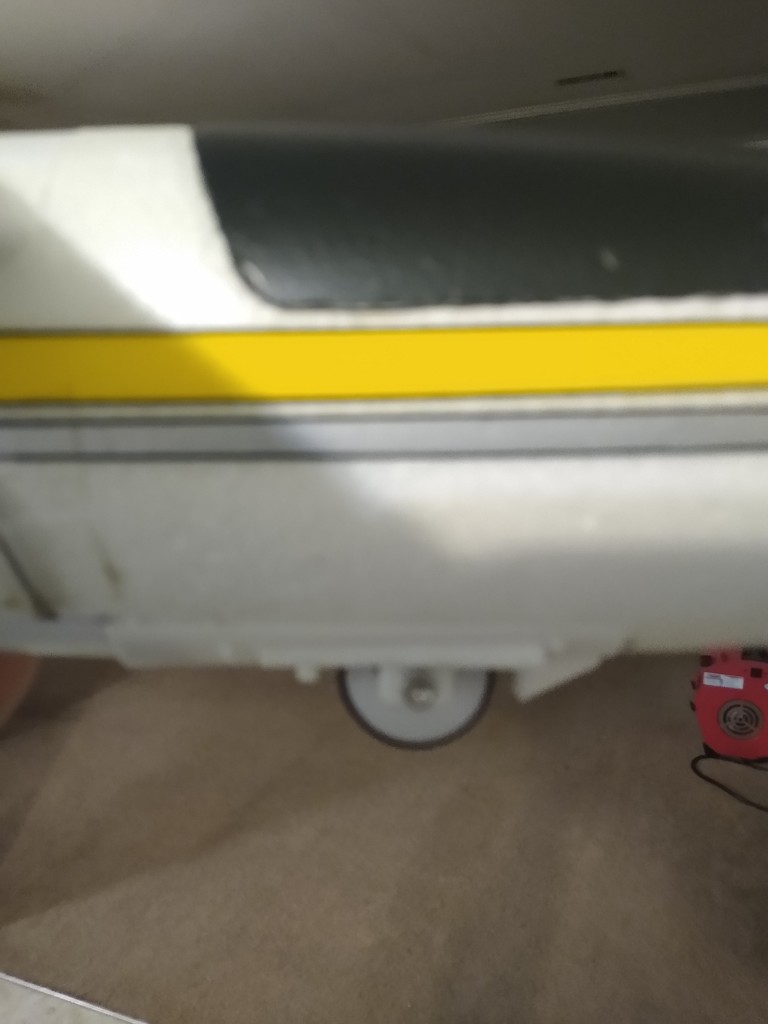

<p>Landing wheel for Conscendo Evolution. Plane has a plastic skid, landing on a hard surface wears it out pretty fast, so I designed this replacement. It takes the place of the stock skid.</p> <p>I am pretty sure that the same skid is used on the Conscendo Advanced also. I intend to print one and try it on the Advanced.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Creality</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>Ender 3 Pro</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>Yes</p></div> <p><strong>Resolution:</strong></p> <p>.16 or .2</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>20</p></div> <p><strong>Filament:</strong> Overture PLA and TPU White</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>I included a screen grab of my support setting for the skid. It is printed at .16 layer height. The settings listed work pretty well on my Ender 3 pro, print the skid oriented so that the 4 pegs are on the build plate. Print with a Brim.</p> The two wheel pieces are joined with a 3mm x 6 screw. It should self tap into the other half of the wheel. The wheel can be printed at .2 mm layer height. <p>A 3mm x 30mm bolt is used for the axle, using a jam nut.</p> <p>The TPU wheel was printed on my Creality CR-6 w/Direct Drive.</p> </div></p></p></p> Category: R/C Vehicles
