Coaster With Hexagonal Pattern & Dispenser

prusaprinters

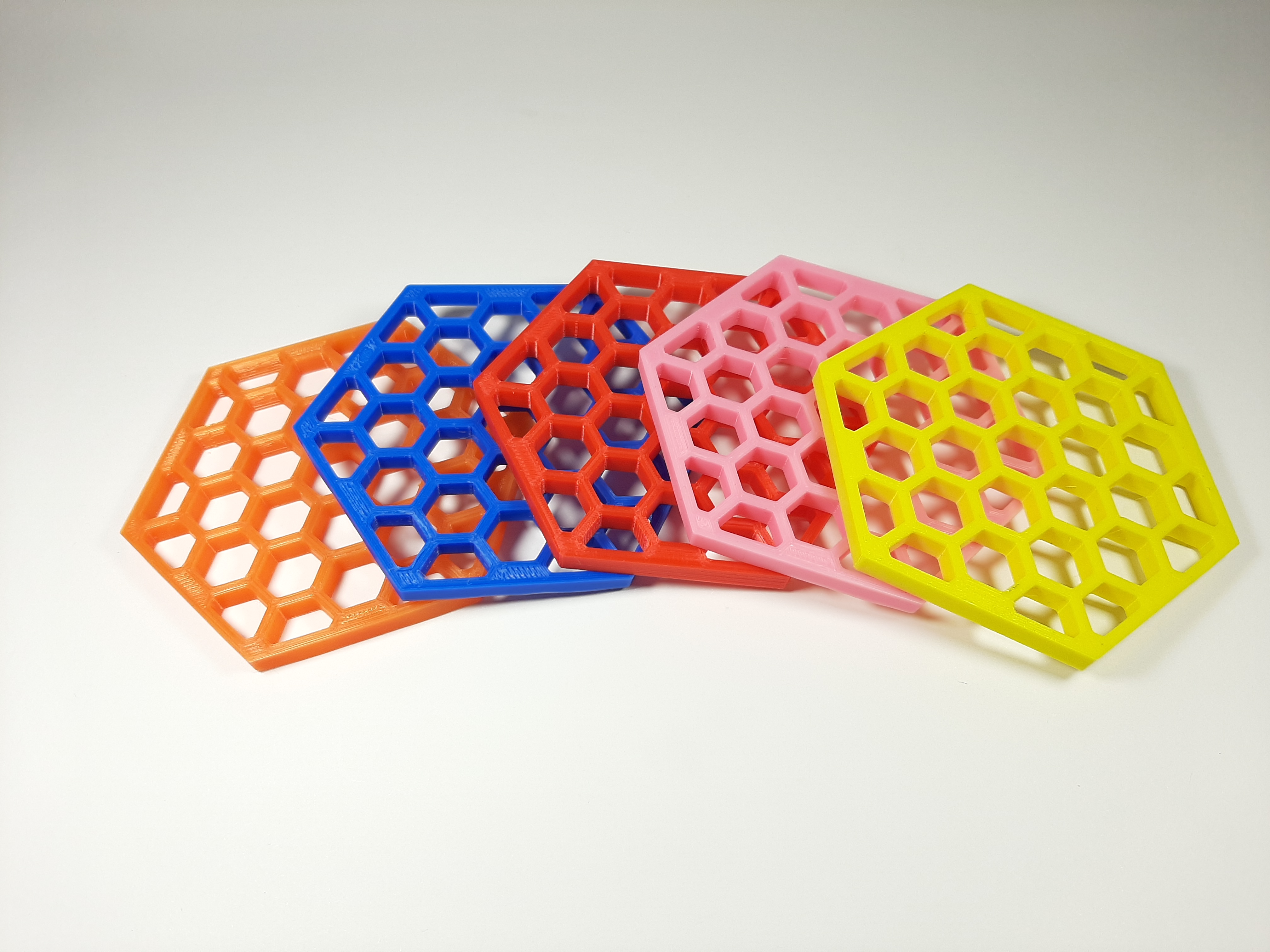

<p>As the title says, this is a coaster design with a hollowed out hexagonal pattern and a dispenser to hold up to 5 of them together.</p><p>The hexagonal pattern itself is not really my own original design, as I drew a lot of inspiration from google images. That said, the eraboration of the 3D model of the coaster and dispenser are original.</p><p>In the following image, I detailed the most important dimensions of the coaster:</p><figure class="image"><img src="https://media.printables.com/media/prints/223279/rich_content/b1117ba3-9ba6-4042-a4c9-521a840f9029/posavasos-isometrico_page-0001-copia.jpg#%7B%22uuid%22%3A%22bccf1f59-1c1e-4696-bf9d-2f1adfc898b4%22%2C%22w%22%3A1561%2C%22h%22%3A1170%7D"></figure><p>I think they will be useful if you plan to make your own dispenser for this type of coaster.</p><p>For the same reason, I also attached the SOLIDWORKS 2020 .sldprt files for the coaster and the dispenser, so they can be modified at will.</p><h3>Print Settings</h3><p>Both models where printed in PLA and PETG, without supports or rafts, at 0.2 mm resolution and 100% infill for the coasters and 15% for the dispenser.</p><p>All the parts can be printed as they are, there is no need for supports or rafts.</p><h3>Assembly</h3><p>There is not really an assembly process to follow. If you have already printed the dispenser, you can stack your coasters (up to 5) in it, just like in the gif bellow:</p><figure class="image"><img src="https://media.printables.com/media/prints/223279/rich_content/00b49074-6cc0-4561-bd6a-ae7f7bcc247c/dispensador-posavasos-montado-mas-lento-y-pausa-final.gif#%7B%22uuid%22%3A%22a9c688ef-75cd-4738-b774-0668142090d4%22%2C%22w%22%3A600%2C%22h%22%3A338%7D"></figure>
