CM275t mount

prusaprinters

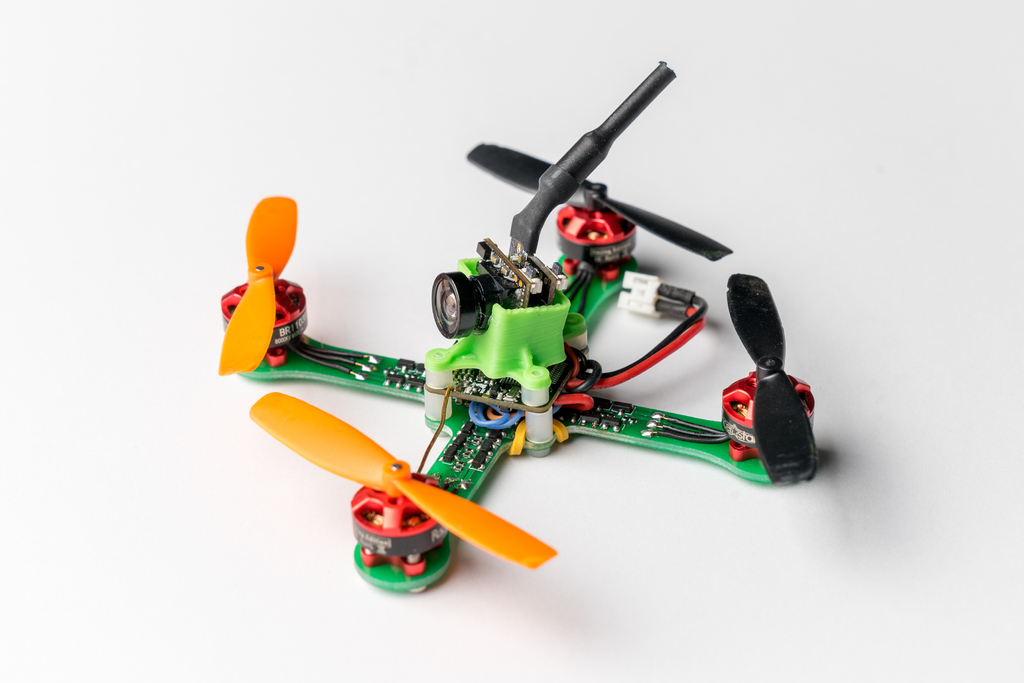

<p>This mount suits the CM275t all in one FPV camera and transmitter on copters with a 16mm electronics stack at 45°. The camera lens is centred on the craft so weight is shifted slightly off centre. The camera has 10 degrees of tilt which I find is fine for a small 1S build flown indoors.</p> <p>The copter seen in the photos is a <a href="http://fishpepper.de/projects/pepperf1sh/">PepperF1SH</a> inspired build using the <a href="http://fishpepper.de/projects/tinyfish/">TinyFISH FC</a> and a ESC/Frame combo of my own design details of which can be found on my <a href="https://andrewtaylor.net.au/2017/11/09/micro-quad-esc-frame/">blog</a>.</p> <h3> Print Settings</h3> <p><strong>Supports:</strong></p> <p>No</p> <p><p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.2mm</p></div><strong>Infill:</strong></p> <p>100%</p> <h3> <br/> <p class="detail-setting notes"><strong>Notes: </strong> </p><div><p>Wall thicknesses are designed for a 0.5mm extrusion width.</p></div> Post-Printing</h3> <p>After printing drill the mounting holes to 1.5mm and then tap with an M2 thread.<br/> A small dab of hot glue in the bottom of the mount will keep the camera locked in place.</p> </p> Category: R/C Vehicles
