clutch gripper mount

prusaprinters

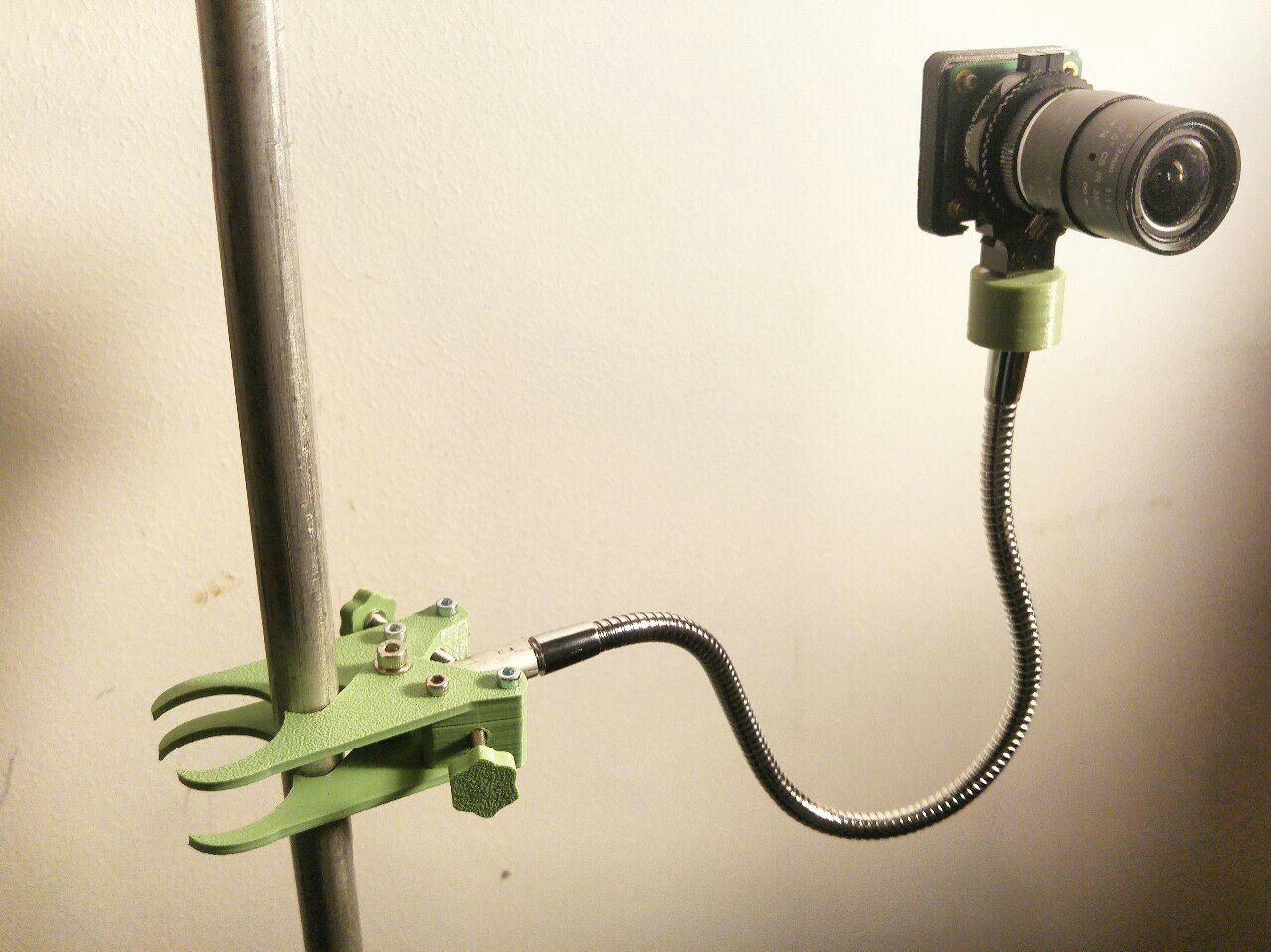

<p>this is a clutch/gripper for holding or mount items, cameras, chemical stuff.<br>originally intended as a 3D sketch for a version made of aluminum, it turned out that the printed version is also relatively strong and sufficient for my purposes.<br>of course there are limits.<br>Maybe it will help others too.&nbsp;</p><p>you might be interested in my other design of a <a href="https://www.prusaprinters.org/de/prints/123685-laboratory-clamp">laboratory clamp</a>.</p><figure class="image image-style-align-center"><img src="https://media.prusaprinters.org/media/prints/123448/rich_content/8233c686-939a-4e40-a7e8-8d1c78a7c237/greifer.gif#%7B%22uuid%22%3A%22bddb10c1-fd1b-41eb-a59e-26d8083efc6a%22%2C%22w%22%3A480%2C%22h%22%3A437%7D"></figure><p>You need some kind of tube made of aluminum, steel or something similar, you can also try wood.<br>Drill a 4mm hole about 5mm before the end of the tube. This is where the gripping tongs are fixed with an M4 screw.<br>M3 screws and nuts to fix the claws.</p><p>I used M4 screws with hats to adjust the gripper. I added a screw hat. it might fit for you.</p>
