'Catproof' Toilet Paper Holder v2

prusaprinters

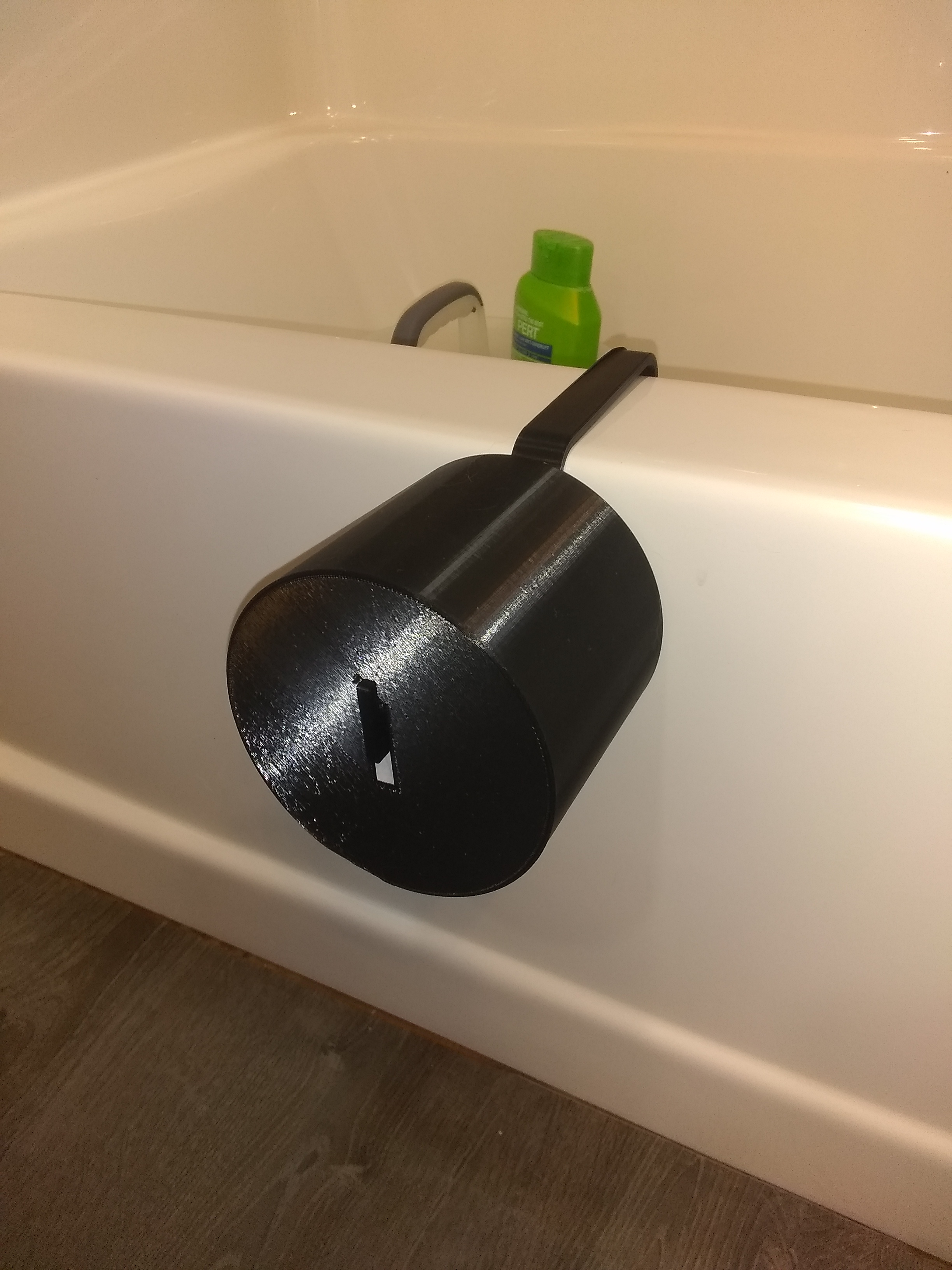

<p>This is a (hopefully) catproof 2 part TP holder designed to fit over the edge of the tub and shower stall we bought from Home Depot and installed in our home. I'm not much of an artist, so the only things I cared about when making this is that it uses the least amount of material, be parametric and adjustable, and of course, works. The hanger keeps the cat cover from spinning and turning into an attractive toy. (never the kind of attention you want your TP to attract)</p><p>I printed them in Black eSun PLA+. Attached are CAD (fusion 360), 3MF, and gcode files. (sliced in CURA) Depending on your tub edge, you may have to alter that dimension to make it fit better. The gcode attached has anti warping tabs on filleted extremities to help with lifting. If you're slicing fresh gcode, I would recommend using that or a brim for best results. I included two different cat cover gcodes. One is for thick walls and the other prints in a modified vase mode.</p><p>I used Ender 3s for these prints (200x200x300) with PEI build plates and sliced the gcode to print with thick walls, low infill, and 1.5mm of retraction since I modified my printers to be direct drive.</p>
