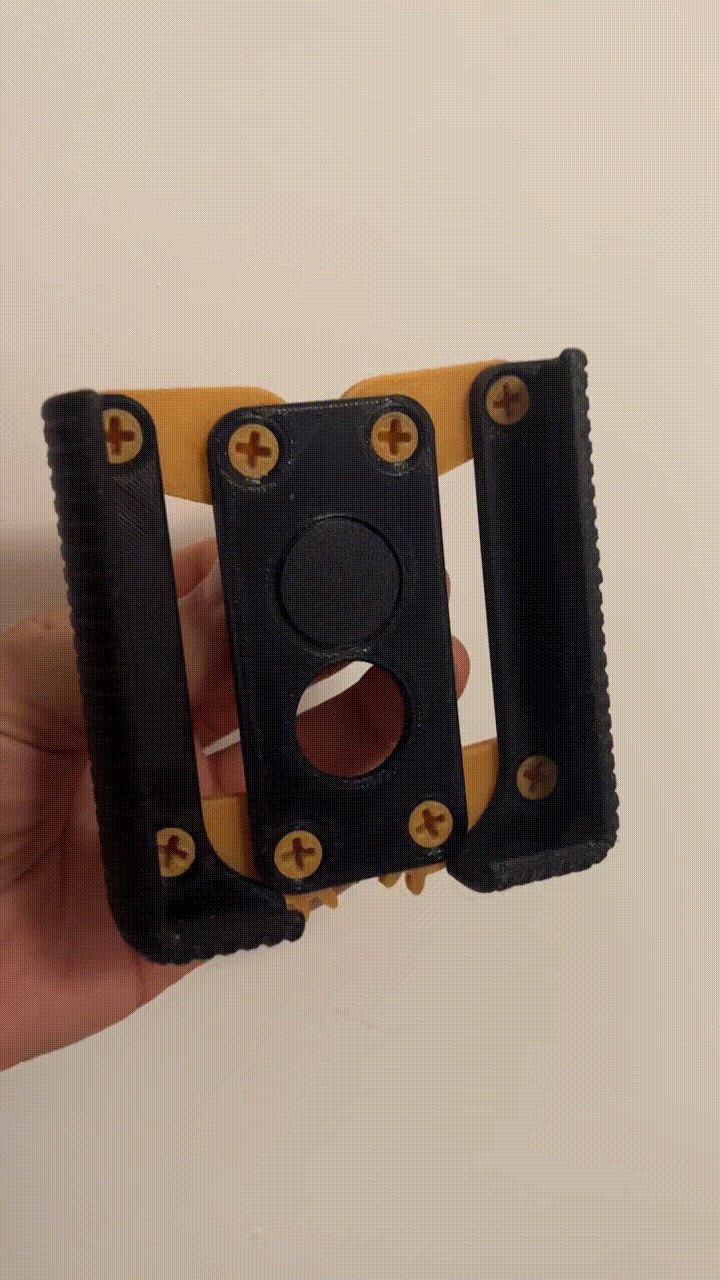

Car Phone Holder

prusaprinters

Print instructionsHolder:If your phone is over 71 mm in widthcar_phone_holder_base.stl - no supports requiredcar_phone_holder_left_side.stl - no supports requiredcar_phone_holder_right_side.stl - no supports requiredIf your phone smaller, but over 68 mm in widthcar_phone_holder_base_68.stl - no supports requiredcar_phone_holder_left_side_68.stl - no supports requiredcar_phone_holder_right_side_68.stl - no supports requiredThe rest does not depend on phone widthcar_phone_holder_rod_a.stl - print twicecar_phone_holder_rod_b.stl - print twicecar_phone_holder_bolt.stl - print four timescar_phone_holder_bolt_gum.stl - print four timesClip:clip_a.stl - to be printed on a cut side - no supportsclip_b.stl - to be printed on a cut side - no supportsclip_a_and_b.stl - if your printer can manufacture perfect bottom surface of the sphere, then you can print clips as one piece. For stronger piece, print it on its sideclip_nut_S.stl, clip_nut_M.stl, clip_nut_L.stl - depending on tolerances of you printer one of them will fit perfectly. Print all of them and then try one by one starting from "L".clip_bolt.stl - print two of themclip_wrench.stl - optional part, of you need stronger grip, but be careful not to brake plastic partsYour own mounting - M26x1.5 mm metric thread 20 mm ballAssembly InstructionsHolder: Screw holding arms to geared rods using "long" bolts and geared rods to the central base with short screws. Use PH3/PZ3 screw driverClip:Glue two halves together with super glue.Screw clip to the base. Fixate the clip on your car ventilation. Screw it with printed bolts using flat screwdriver.You can put rubber band (or bands) on the long bolts to make grip stronger. This holder will operate even without ribber rings! If you intend not to use rubber bands at all, you can print all eight bolts using car_phone_holder_bolt.stl If you will print this model, please post a make. Thanks!
