Cap de frezat (Milling unit)

grabcad

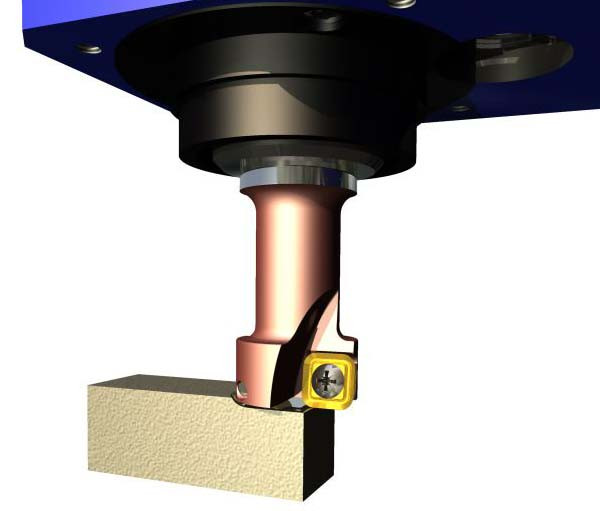

The mini-milling machine's assembly serves as its functional unit for hobby activities. Precise measurements were taken for each component, including spur gears. Many would be interested in this model for repairing or manufacturing parts, especially spur gears, with drawings available. The zip file contains 1 .iam file and 46 .ipt parts, along with two added objects (Milling tool and a part) from GrabCAD's engineer Ivan Zerpa. Improvements were made to these objects, including the Morse 3 cone. A new file, "Cap de frezat.ipn," serves as the base for assembly animation. Watching the animation video provides insight into construction, and users can view it from different angles by opening the file in the correct directory while eliminating unnecessary objects. The question is raised about why create a real mechanism when animations can be made on-screen. Animation allows visualization of how it works, but a physical model offers a tangible experience and reveals internal mechanisms.
