BTT Octopus DIN rail mount with fan option
prusaprinters

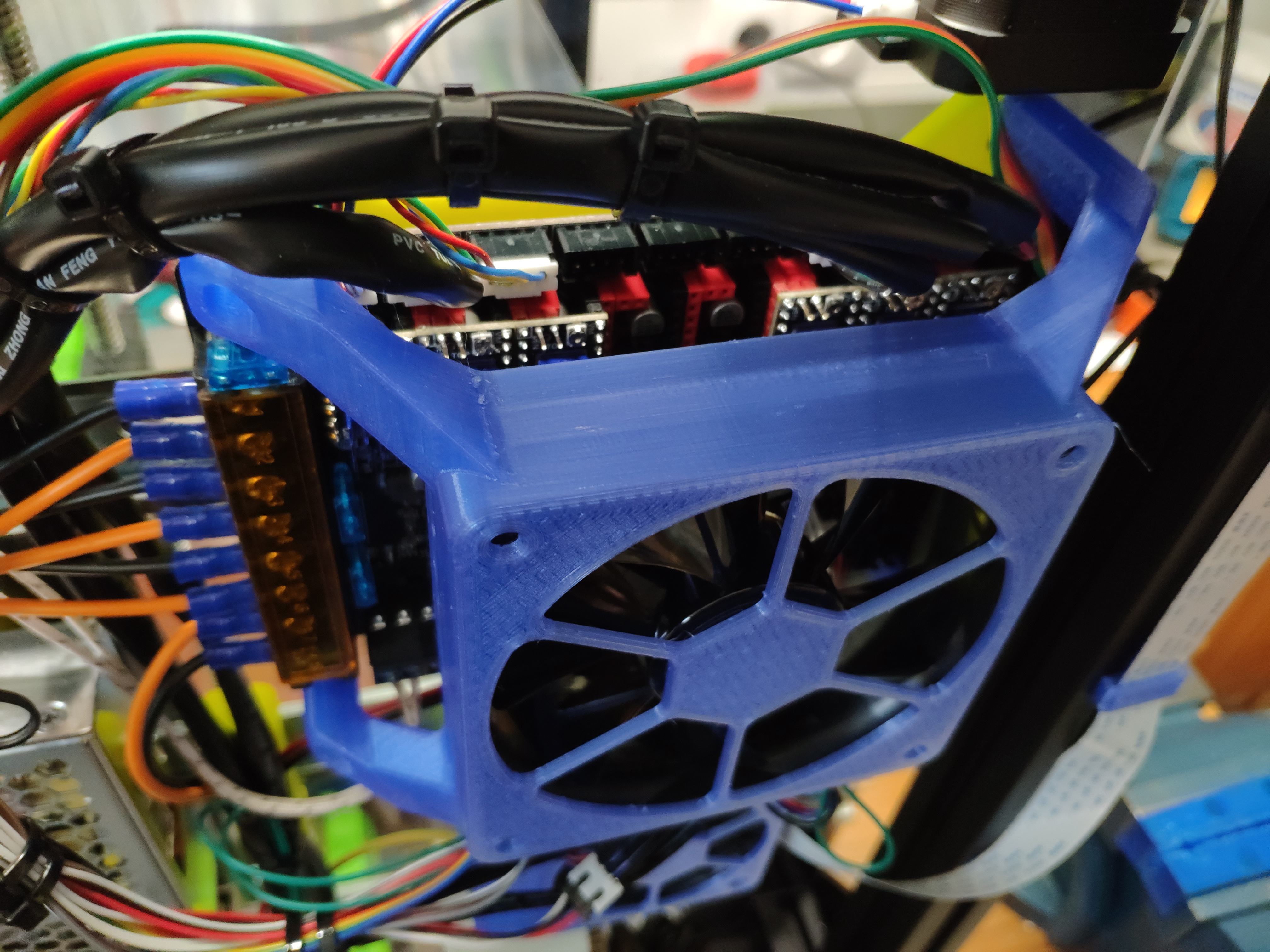

<p>Mount for the BigTreeTech Octopus V1.1 board using a DIN rail.<br>Options for 92mm and 120mm fan.</p><p>Prints without supports.</p><p>Printed in PETG at layer height 0.2mm.</p><p>I mountend the Octopus with M3 brass standoffs. Fan Mounts are designed for M3 heat inserts.</p><p>The fan mounts have clips to hold the fan in place. I didn't use screws for the fan. The fan mount on the picture is the 92mm version. 120mm fan mount is untested.</p><p>DIN Rail Mount is based on the Voron DIN rail clip. (<a href="https://github.com/VoronDesign/Voron-2/blob/Voron2.4/STLs/VORON2.4/Electronics_Compartment/DIN_Brackets/pcb_din_clip_x3.stl">https://github.com/VoronDesign/Voron-2/blob/Voron2.4/STLs/VORON2.4/Electronics_Compartment/DIN_Brackets/pcb_din_clip_x3.stl</a>)</p><p>Hardware needed:</p><ul><li>M3 bolts for the Octopus, 8x M3x6 mm</li><li>PCB standoffs brass, 4x M3x10 mm</li><li>M3 heat inserts for mounting the fan, 4x</li><li>M3 bolts for mounting the fan, 4x M3x6 mm</li></ul>
