Brio Compatible Cargo Car

prusaprinters

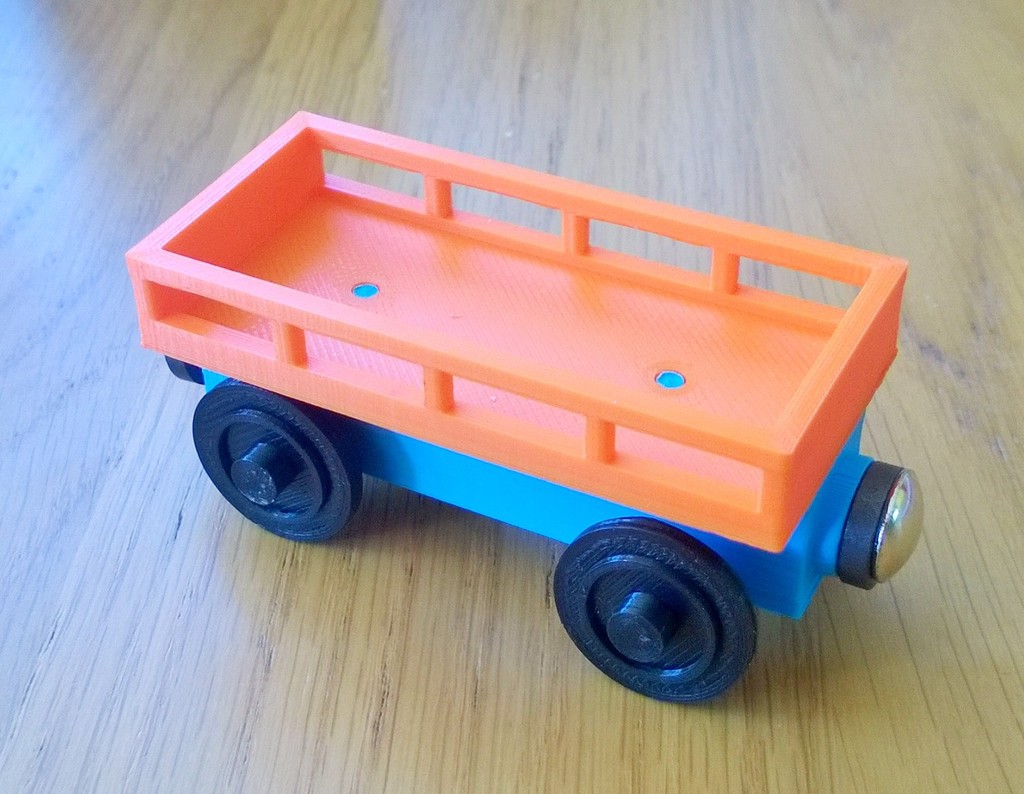

<p>A brio compatible cargo car.</p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>Prusa i3 MK2</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>Doesn't Matter</p></div> <p><strong>Supports:</strong></p> <p>Yes</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.15mm</p></div> <p><strong>Infill:</strong></p> <p>20%</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>I used the following tools:<br/> 3d printer (!) <p>Dremel with cutting attatchment</p> <p>Hammer</p> <p>(Superglue)</p> <p>Print the following:</p> <p>1x base</p> <p>1x top</p> <p>4x wheels (supports needed)</p> <p>I used the following to make the magnetic connectors:</p> <p>2x <a href="http://www.ebay.co.uk/itm/302243779048">12x3mm ring ferrite magnets with 3mm hole</a></p> <p>2x <a href="http://www.ebay.co.uk/itm/161327980527">Silver upholstery nails 11mm diameter</a></p> <p>To make the wheel axles I used:</p> <p>1x <a href="http://www.ebay.co.uk/itm/252153410420">Steel spring rod 2mm diameter 100mm length</a></p> <p>I cut the rods into 30mm lengths and smoothed off the ends using a dremel.</p> <p>Alternatively you could try something like <a href="http://www.ebay.co.uk/itm/121777702407">this</a> to avoid cutting.</p> <p>All parts are designed to be a tight fit (hence use of hammer!). You could add superglue for extra hold.</p> </p></div></p></p> Category: Toys & Games
