Brickatinny

prusaprinters

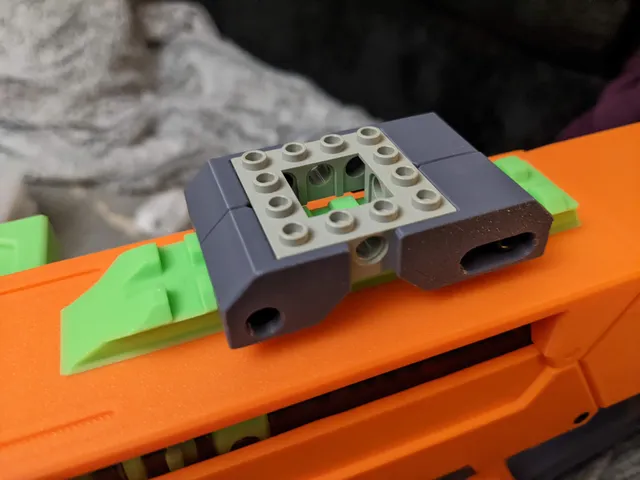

Brickatinny: for when you wanna brick up your blaster's picatinny rails. Impractical? Yes. Fun? Oh, also very yes.Fits any standard Technic brick. Minimum brick length is a 3x1, maximum is whatever you got the space for.Required Hardware:2x - M3 30mm Socket Head bolts2x - M3 NutsNotes:STL's are oriented for printing.No supports should be required.Outer brim might be a good idea since there's some thin areas in the first layer.Minimum of 3 walls, 15% gyroid infill. But there's not a whole lot of difference in print time or filament use by just going ahead and using 5 walls and 20%The nut recess on the “Short Block - Nut Side” is a slight press-fit. I managed fine, but you may or may not need to lightly file it or trim the opening with an exacto knife if having issues.What I used:Printer: Bambu X1CFilament: Inland PLA+ GrayLayer Height: 0.20mmWalls: 5Top Layers: 5Bottom Layers: 5Infill: 20% GyroidAgain, can probably get away with like 3 walls, 3 top/bottom layers, and 15% gyroid … but I didn't notice enough of a diff between that and what I used to really care.
