Bottom Clip Tab for Levolor 2 Inch Blinds

prusaprinters

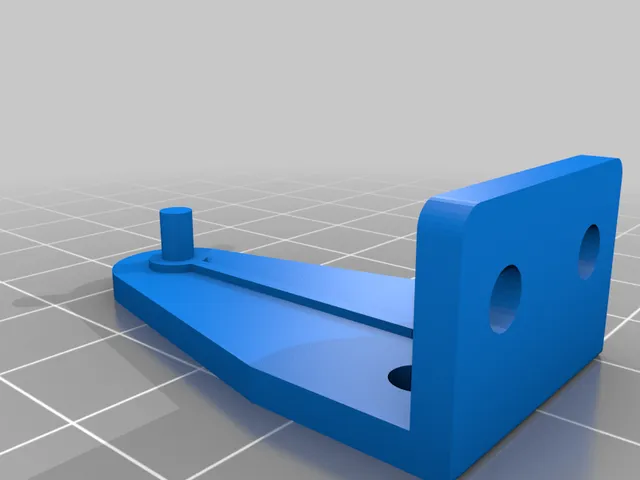

This is a clip which holds the bottom of some 2-inch, Levolor blinds to a windowed door in our sun room. My daughter accidentally broke one, so I modeled and printed a replacement. It seems to fit very well, and it's holding up nicely. Enjoy! Print Settings Printer Brand: Creality Printer: Ender 3 Pro Rafts: No Supports: No Resolution: .2 Infill: 100 Filament: Hatchbox PLA White Notes: I printed this using a Brim, but it's not required. I printed this at 100% for strength, but it's so thin I don't think it would matter anyway. This part was printed with the long, flat side down for ease of printing. There's not a ton of load on this part, so I think it is strong enough for my use (time will tell). Obviously, this orientation is not the strongest for the small peg due to the nature of the 3d printed layers. If you're worried about peg strength/longevity, you may want to print this on its side with supports or at a diagonal of some kind. Category: Replacement Parts
