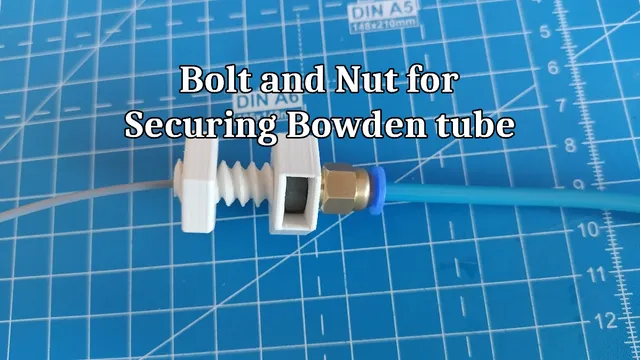

Bolt and Nut for Securing Bowden tube

prusaprinters

DescriptionI created this bolt “guide” for filament and Bowden tube. Use case is when you want to use coupler to secure Bowden tube bud you have thick wall on your enclosure or dry box. So I created these in the bolt you just simply insert M6 nut for securing Coupler.Thread has good tolerances so when you have good dimensioned printer the nut will easily thread on the bolt.It come with three thread shaft sizes 10mm,15mm and 20mmPrintingPrint with the default orientation.4mm nozzle and 0.20mm layer thickness work best for me but you can try bigger layer thickness. Works with PLA and PETG.Best Support is organic around the shaft hole inside and outside insert hole for  M6 bolt.Auto painting works fine with small change to need to make.InstallingIs simple jus drill 10mm hole in the wall where you want to install the bolt and tighten up with the nut. No glue need it .
